Memory card reader
Follow these steps to remove the memory card reader:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 31).
2. Remove the access panel (see Access panel on page 32).
3. Remove the front bezel (see Front bezel on page 34).
4. Remove the drive cage (see Drive cage on page 35).

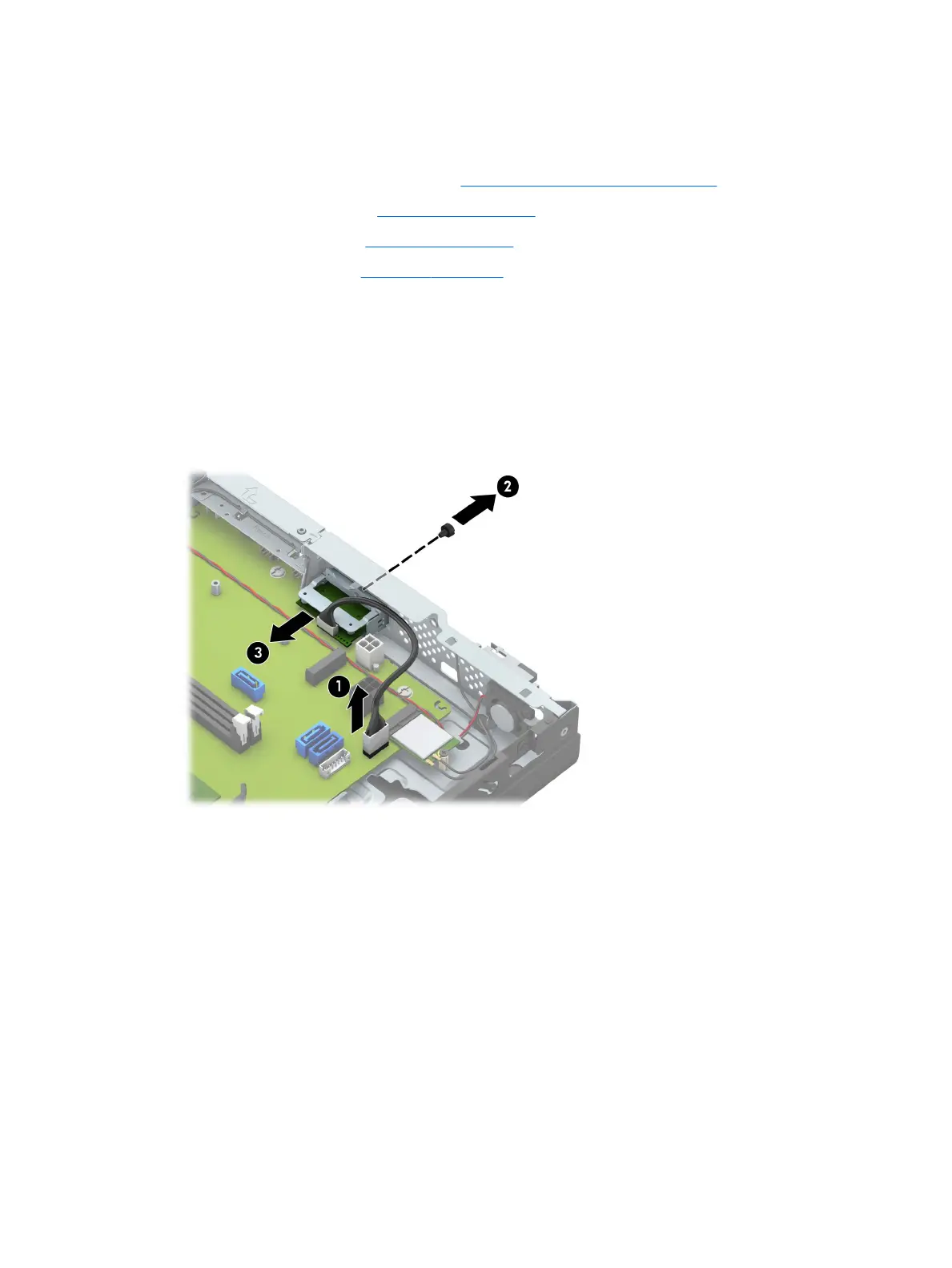

Remove the memory card reader:
1. Position the computer with the front panel toward you.
2. Disconnect the memory card reader cable (1)from the system board.
3. Remove the Torx-15 M3.0×9.0 screw (2)that secures the memory card reader to the computer chassis.
4. Slide the memory card reader (3)back into the computer chassis, and then remove the memory
card reader.
Reverse this procedure to install the memory card reader.
38 Chapter 4 Removal and replacement procedures
