Removal and replacement procedures 33
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 28).
o Remove the server from the rack (on page 30).
4. Remove the access panel ("Access panel" on page 37).
5. If a full-length expansion board is installed on a PCI riser cage, remove the riser cage ("Remove the PCI
riser cages" on page 31).

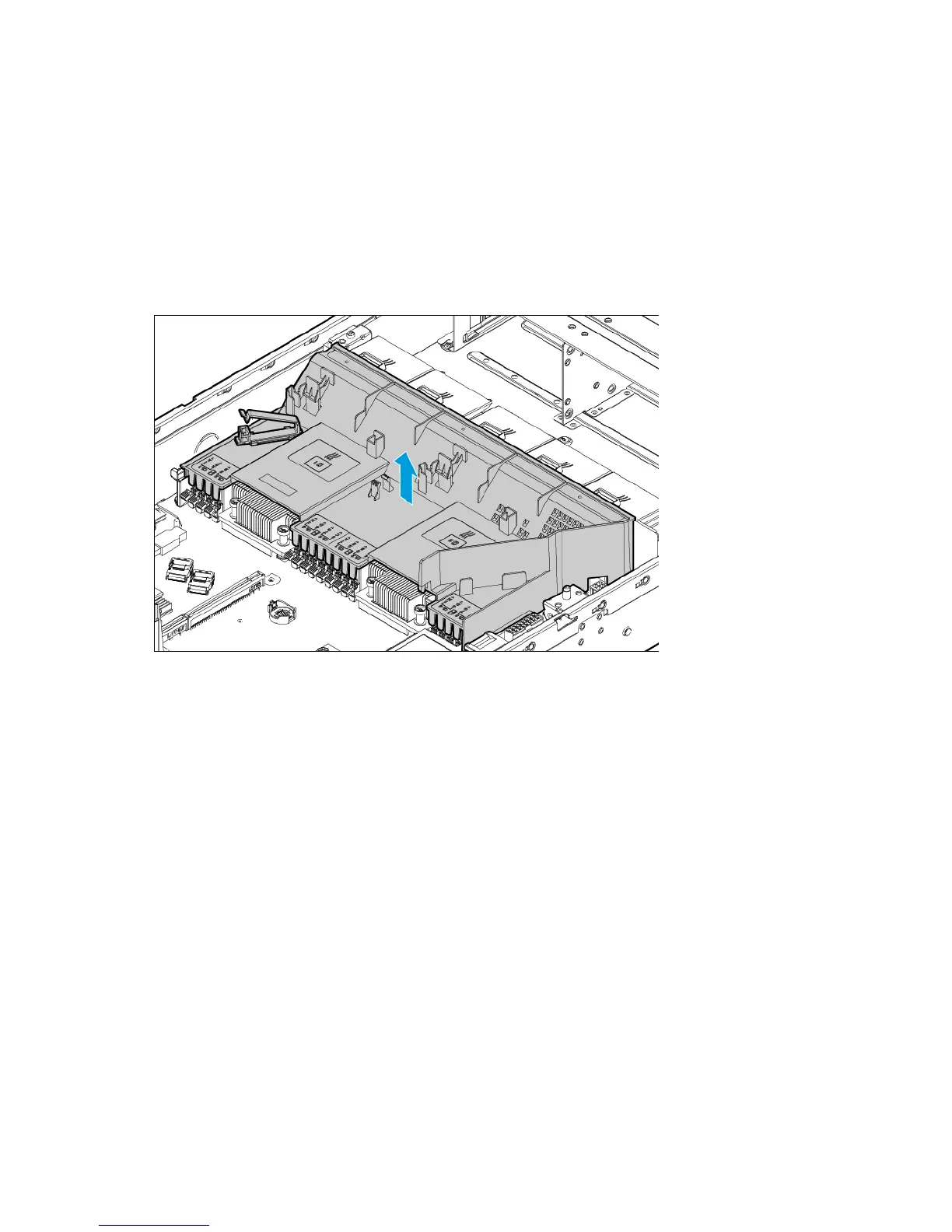

6. Remove the air baffle.
Remove the fan cage
To remove the component:
1. Power down the server (on page 27).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 28).
o Remove the server from the rack (on page 30).
4. Remove the access panel ("Access panel" on page 37).
5. Remove the air baffle (on page 32).
6. Disconnect the fan cables.
