HP ProLiant DL180 Gen9 - Front Panel LED Power Fault Codes

Component identification 98

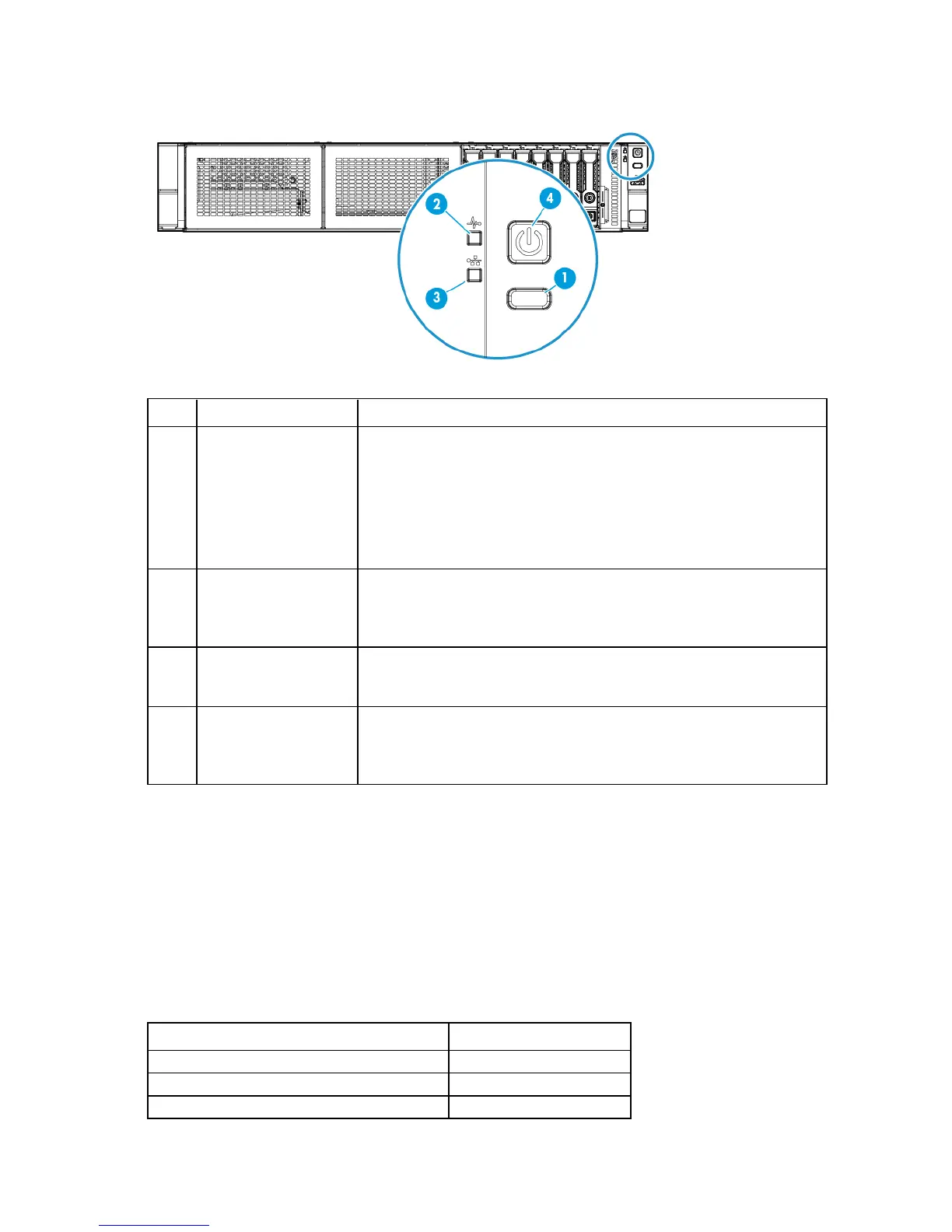

• Front panel LEDs and buttons in an SFF chassis with quick-release latch rack ears
Item Description Status
1
UID button/LED* Solid blue = Activated
Flashing blue:
•
1 Hz/cycle per sec = Remote management or firmware upgrade in
progress
•
4 Hz/cycle per sec = iLO manual reboot sequence initiated
•
8 Hz/cycle per sec = iLO manual reboot sequence in progress
Off = Deactivated
2
Health LED* Solid green = Normal
Flashing green (1 Hz/cycle per sec) = iLO is rebooting
Flashing amber = System degraded**
Flashing red (1 Hz/cycle per sec) = System critical**
3
NIC status LED* Solid green = Link to network
Flashing green (1 Hz/cycle per sec) = Network active
Off = No network activity
4
Power On/Standby
button and system power
LED*
Solid green = System on
Flashing green (1 Hz/cycle per sec) = Performing power on sequence
Solid amber = System in standby
Off = No power present†
* When all four LEDs described in this table flash simultaneously, a power fault has occurred. For more information, see
"Front panel LED power fault codes (on page 98)."
** If the health LED indicates a degraded or critical state, review the system IML or use iLO to review the system health
status.
† Facility power is not present, power cord is not attached, no power supplies are installed, power supply failure has
occurred, or the front I/O cable is disconnected.
Front panel LED power fault codes
The following table provides a list of power fault codes, and the subsystems that are affected. Not all power
faults are used by all servers.
Subsystem Front panel LED behavior
System board
1 flash
Processor
2 flashes
Memory
3 flashes
