Component identification 10

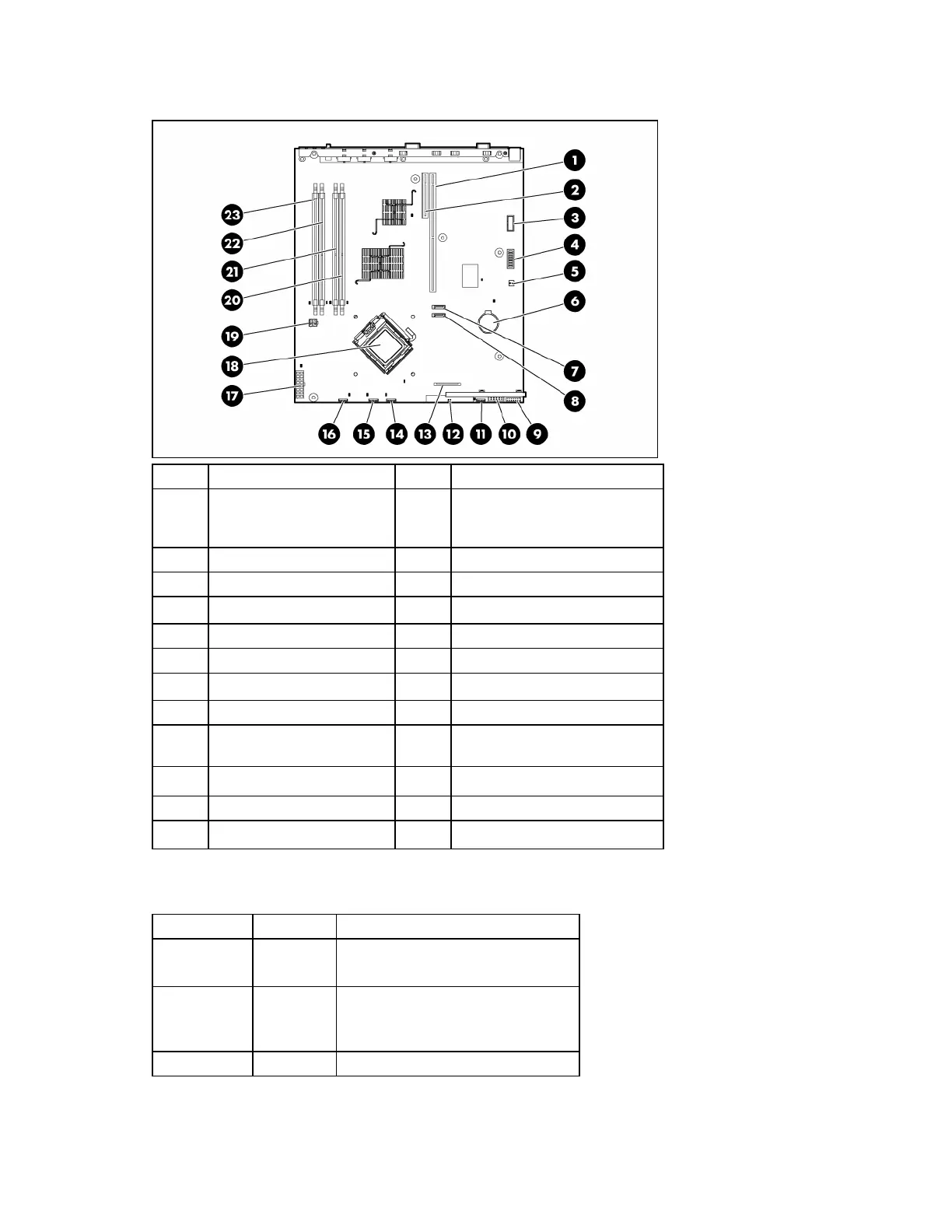

System board components
Item Description Item Description
1
PCI Express x8 connector
or optional PCI-X 133-MHz
connector
13 Diskette drive connector
2 PCI Express x1 connector 14 Fan 3 connector
3 Video option connector 15 Fan 2 connector
4 System maintenance switch 16 Fan 1 connector
5 NMI switch 17 Main power connector
6 Battery 18 Processor socket
7 Hard drive connector 1 19 Auxiliary power connector
8 Hard drive connector 2 20 DIMM slot 1 (bank A)
9
Front panel LED board
connector
21 DIMM slot 2 (bank B)
10 Front USB connector 22 DIMM slot 3 (bank A)
11 Fan 4 connector 23 DIMM slot 4 (bank B)
12 Optical drive connector
System maintenance switch
Position Default Function
S1 Off Off = iLO 2 security is enabled
On = iLO 2 security is disabled
S2 Off Off = Normal operation
On = RBSU will not commit any
configuration changes *
S3 Off Reserved
