Component identification 11
Position Default Function
S4 Off Off = Normal operation
On = Override RBSU setting and
enable diskette boot *
S5 Off Off = Power-on password enabled
On = Power-on password disabled *
S6 Off Off = Normal operation
On = BIOS will clear CMOS and
NVRAM *
S7 Off Reserved
S8 Off Reserved
* "On" activates the function.
NMI switch
The NMI switch allows administrators to perform a memory dump before performing a hard reset. Crash
dump analysis is an essential part of eliminating reliability problems, such as hangs or crashes in
operating systems, device drivers, and applications. Many crashes freeze a system, requiring you to do a
hard reset. Resetting the system erases any information that would support root cause analysis.
Systems running Microsoft® Windows® operating systems experience a blue screen trap when the
operating system crashes. When this happens, Microsoft® recommends that system administrators
perform an NMI event by pressing a dump switch. The NMI event enables a hung system to become
responsive again.

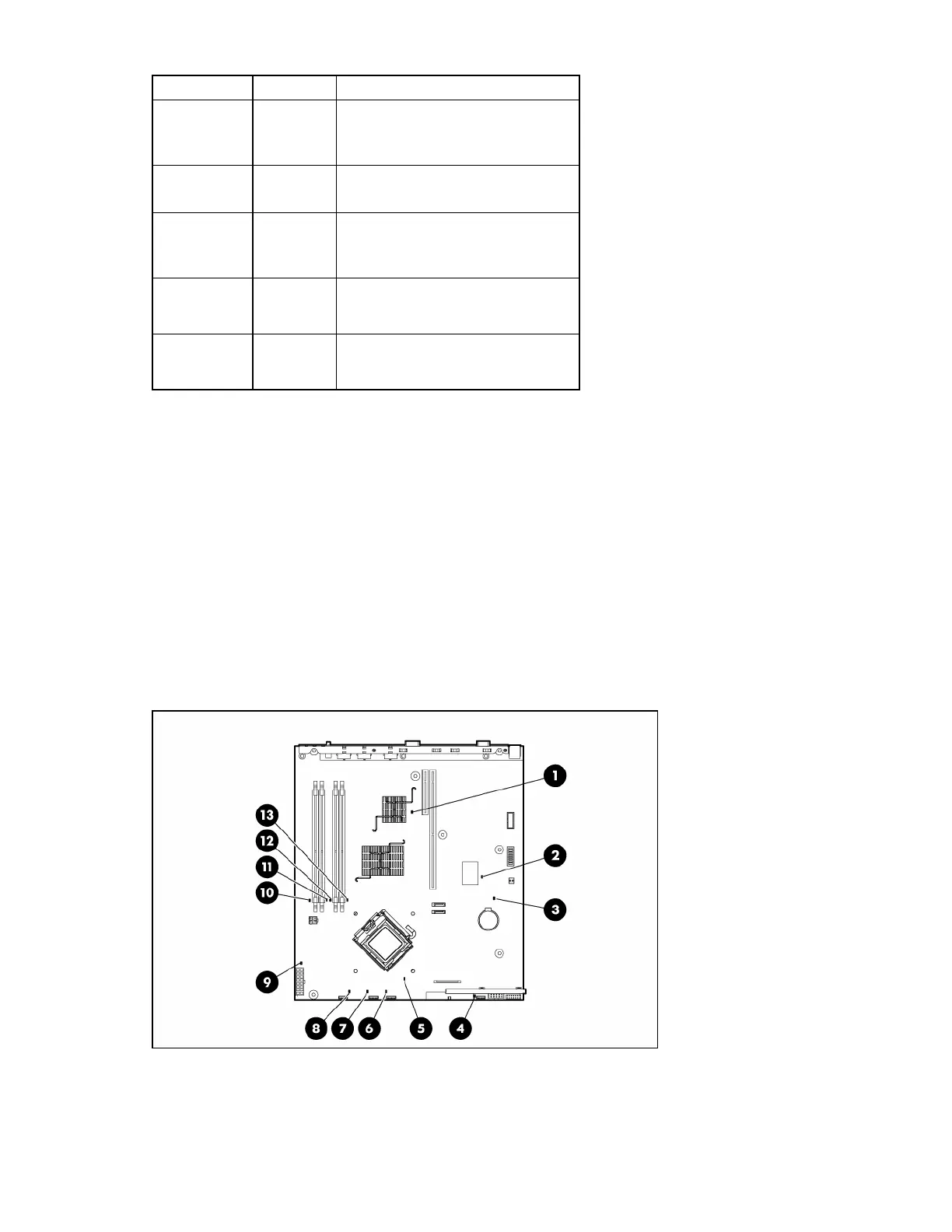

System board LEDs

HP ProLiant DL320 Generation 5 Specifications

General

Processor Sockets	1
Form Factor	1U Rack
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor	Intel Xeon 3000 sequence
Memory	Up to 8 GB
Storage	Up to 2 SATA
RAID Support	Integrated SATA RAID 0, 1
Network	Embedded NC105i
Expansion Slots	1 x PCI-Express
Power Supply	Non-Hot Plug, Non-redundant
