Component identification 8

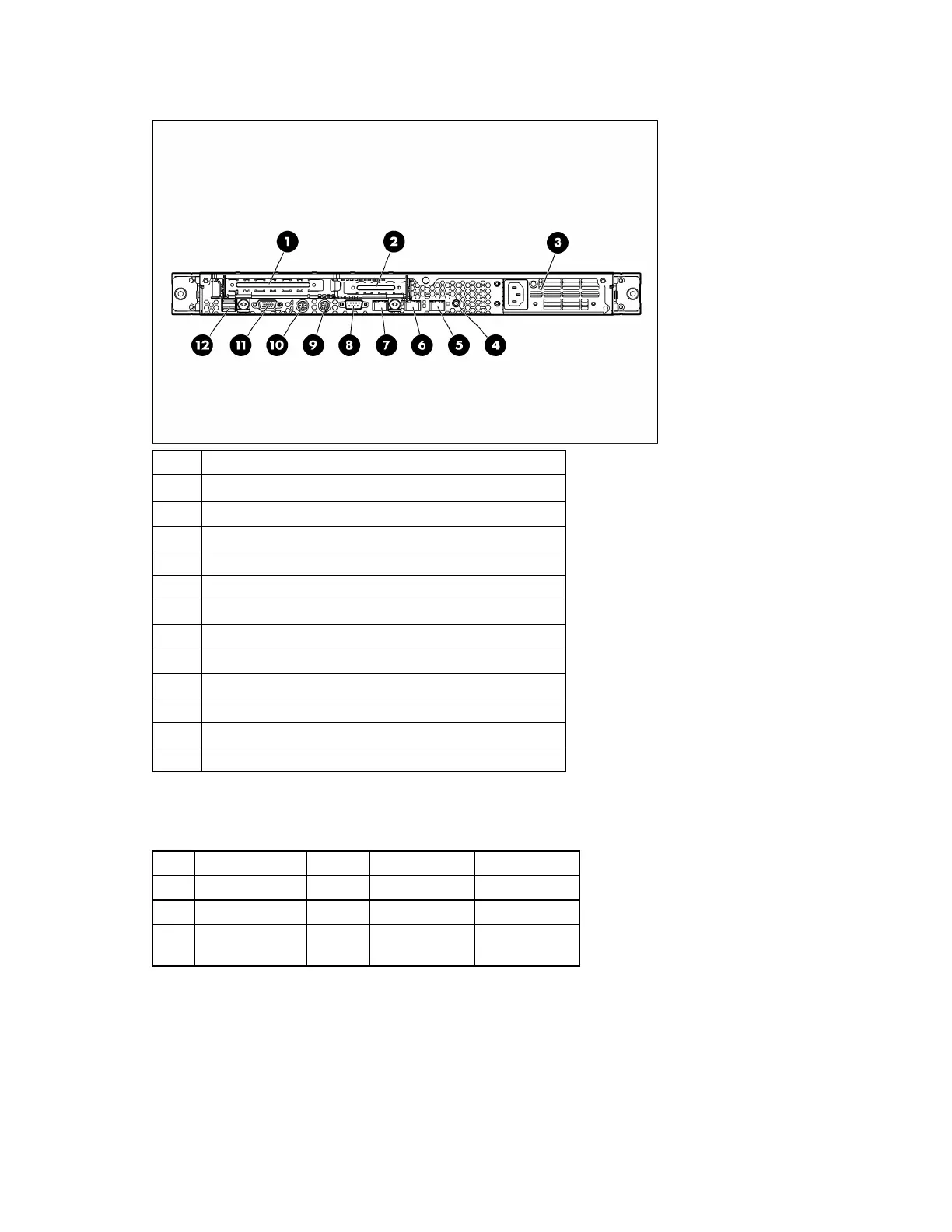

Rear panel components
Item Description
1 PCI Express expansion slot 2, (optional PCI-X, full-length)
2 PCI Express expansion slot 1, low-profile, half-length
3 Power supply
4 UID button/LED
5 10/100/1000 NIC 2
6 10/100/1000 NIC 1
7 iLO 2 management port
8 Serial connector
9 Keyboard connector
10 Mouse connector
11 Video connector
12 USB connectors (2)
PCI expansion slot definitions
Slot Type Length Connector Interconnect
1 PCI Express Half x8 x1
2 PCI Express Full x8 x8
Optional PCI-X Full
133 MHz/3.3
V
64 bit
