Setup 26
WARNING: To reduce the risk of electric shock, fire, or damage to the equipment, do not
plug telephone or telecommunications connectors into RJ-45 connectors.

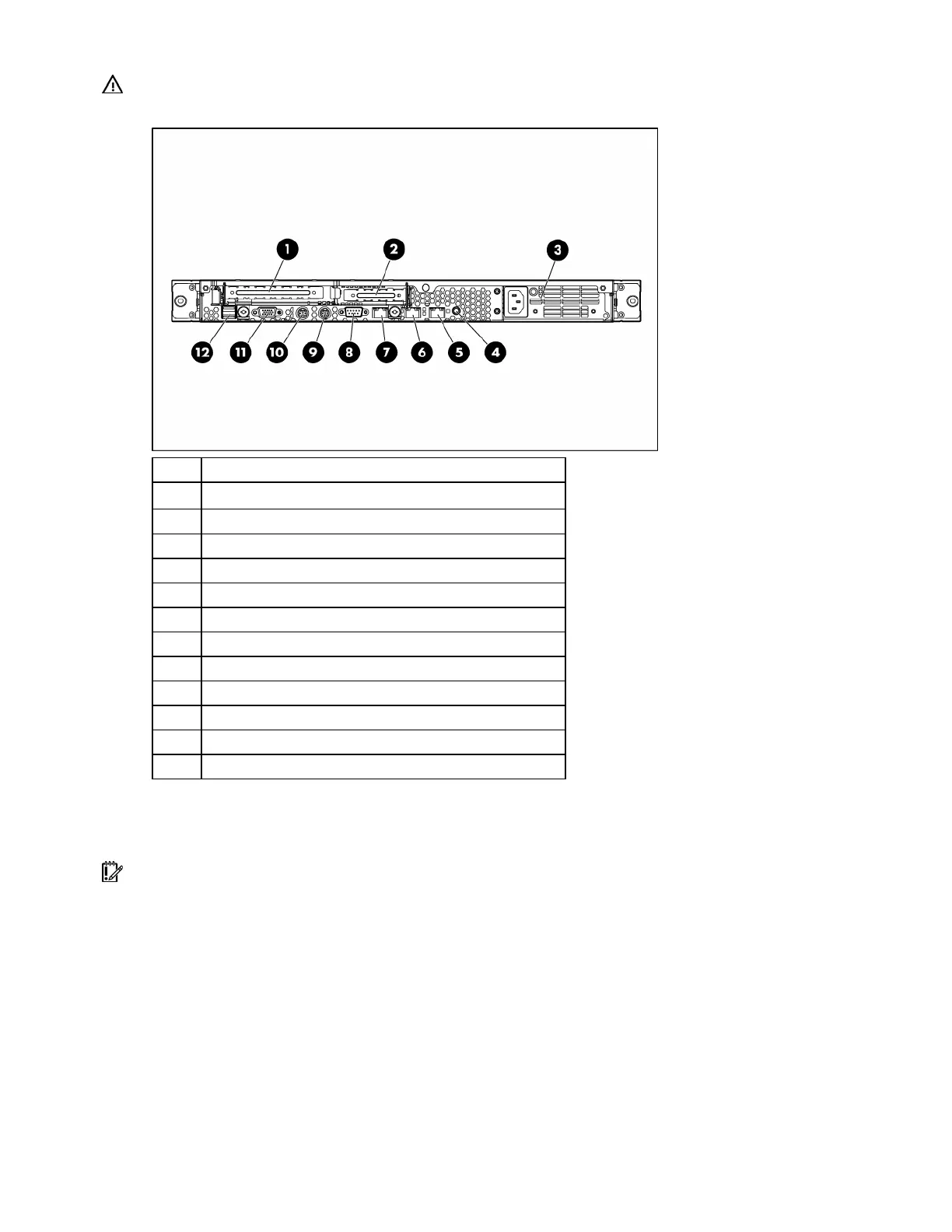

Item Description
1 PCI Express expansion slot 2, (optional PCI-X, full-length)
2 PCI Express expansion slot 1, low-profile, half-length
3 Power supply
4 UID button/LED
5 10/100/1000 NIC 2
6 10/100/1000 NIC 1
7 iLO 2 management port
8 Serial connector
9 Keyboard connector
10 Mouse connector
11 Video connector
12 USB connectors (2)
Powering up and configuring the server
IMPORTANT: The F8 key is available only when a supported storage controller is installed in the server.
To power up the server, press the Power On/Standby button.
While the server boots, RBSU and the ORCA utility are automatically configured to prepare the server for
OS installation.
• Press the F8 key when prompted during the array controller initialization to configure the array
controller using ORCA. The array controller defaults to RAID 0 with one drive installed and RAID 1
with more than one drive installed.
• Press the F9 key, when prompted during the boot process, to access RBSU and change the server
settings (such as language and operating system). The system is set up by default for the English
language.
