HP ProLiant DL380 G7 User Manual

Removal and replacement procedures 34
2. Extend or remove the server from the rack ("Remove the server from the rack" on page 28, "Extend the
server from the rack" on page 27).
3. Remove the access panel ("Access panel" on page 31).
4. If any full-length expansion boards are installed, remove the full-length expansion board shipping
bracket ("Full-length expansion board shipping bracket" on page 32).

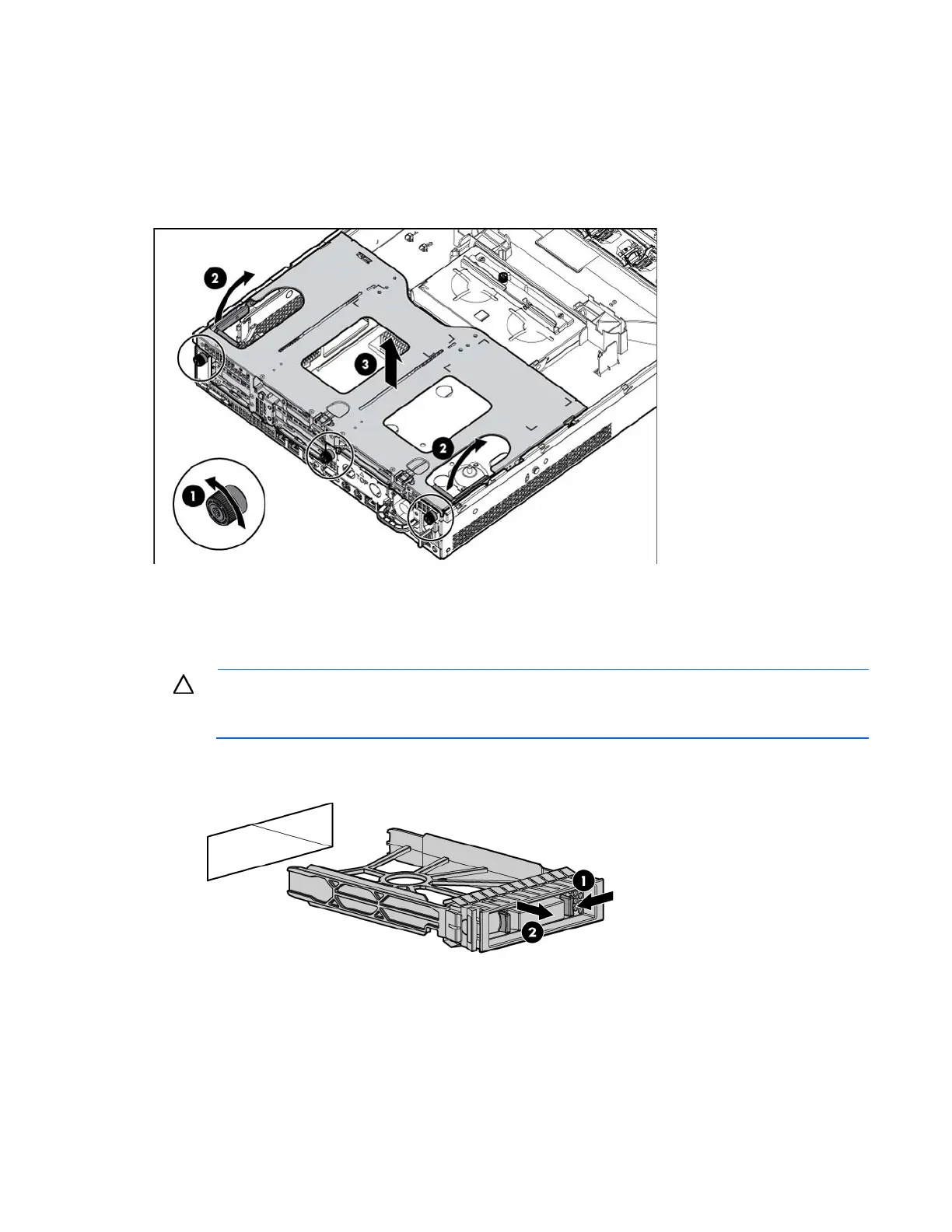

5. Remove the PCI riser cage.
To replace the component, reverse the removal procedure.
SAS hard drive blank
CAUTION: For proper cooling do not operate the server without the access panel, baffles,
expansion slot covers, or blanks installed. If the server supports hot-plug components, minimize
the amount of time the access panel is open.
Remove the component as indicated.
To replace the blank, slide the blank into the bay until it locks into place.
Hot-plug SAS hard drive
To remove the component:

HP ProLiant DL380 G7 Specifications

General

Processor	Intel Xeon 5600 series
Processor Sockets	2
Form Factor	2U Rack
Management	HP Integrated Lights-Out 3 (iLO 3)
Memory	Up to 384 GB DDR3
Storage	Up to 16 SFF SAS/SATA/SSD
RAID Controller	HP Smart Array P410i
Network	Embedded HP NC382i Dual Port Multifunction Gigabit Server Adapter
Expansion Slots	Up to 6 PCIe Gen2 slots
Power Supply	460W, 750W, or 1200W
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
