Removal and replacement procedures 47

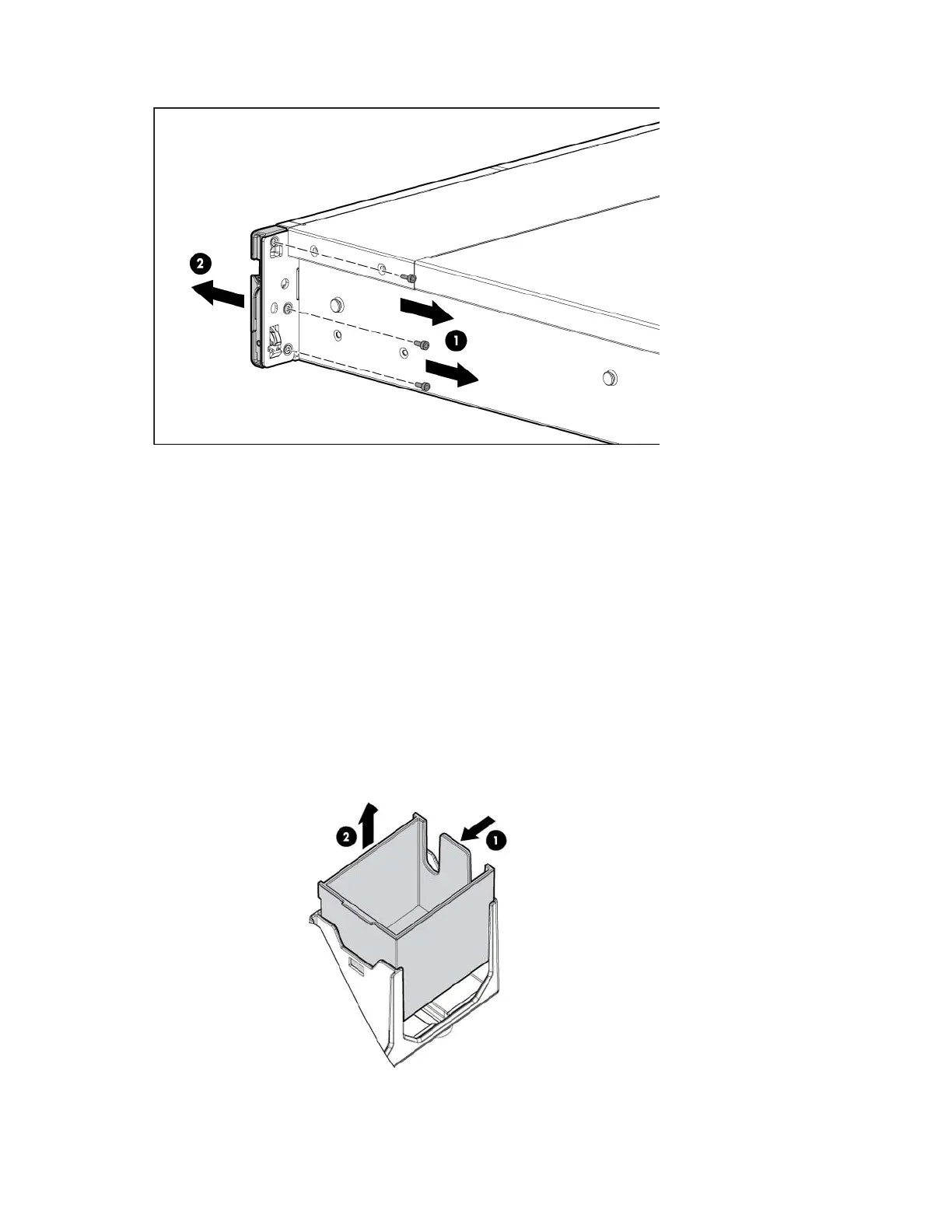

2. Remove the three T-10 Torx screws, and then detach the front bezel.
To replace the component, reverse the removal procedure.
Fan cage
To remove the component:
1. Power down the server (on page 26).
2. Extend or remove the server from the rack ("Remove the server from the rack" on page 28, "Extend the
server from the rack" on page 27).
3. Remove the access panel ("Access panel" on page 31).
4. Remove the PCI riser cage ("PCI riser cage" on page 33).
5. Remove the air baffle ("Air baffle" on page 32).
6. Remove the fan blanks.
