Removal and replacement procedures 57

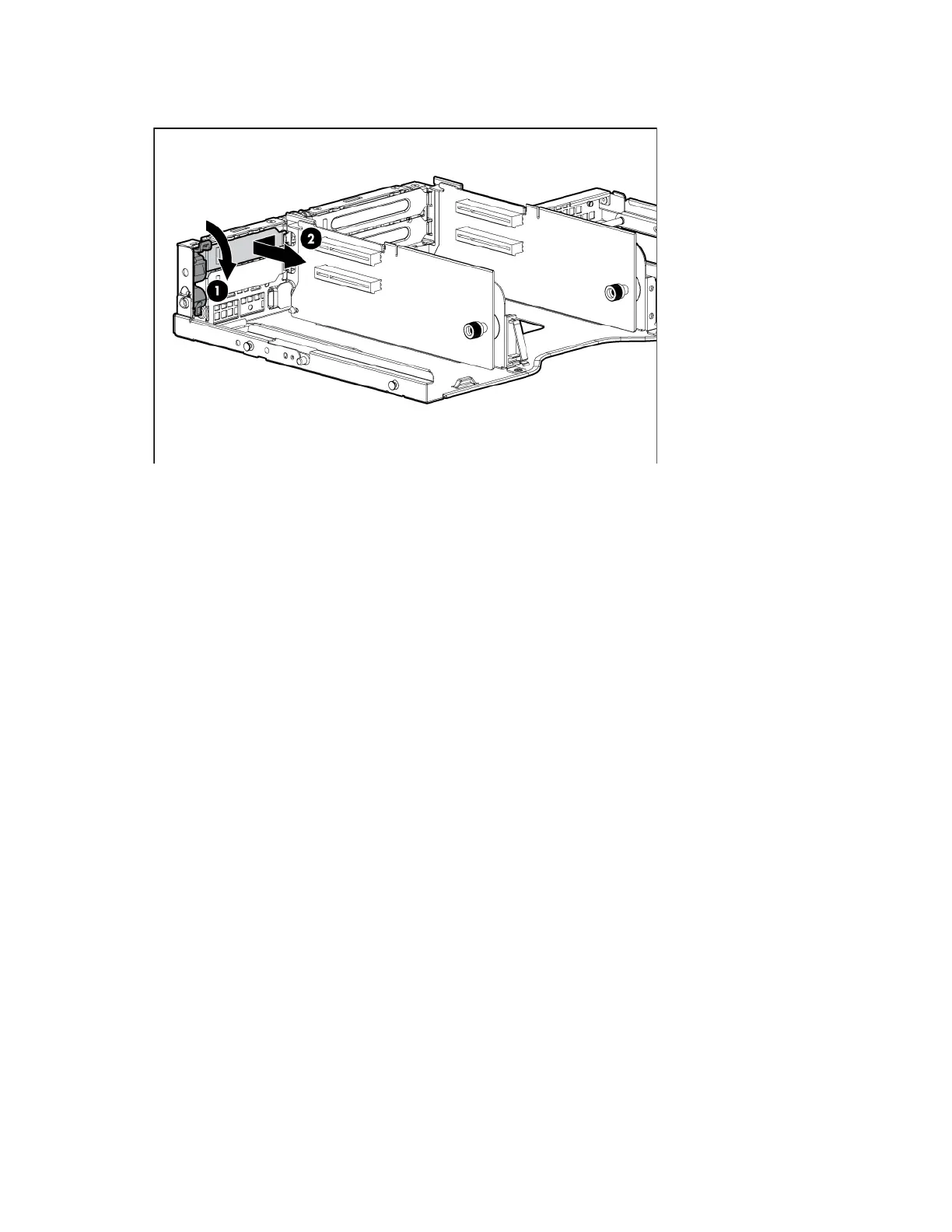

o To remove slot covers 5 and 6, push down on the latch, rotate the latch down, and then remove the
cover.
Expansion boards
Half-length expansion board
To remove the component:
1. Power down the server (on page 26).
2. Extend the server from the rack (on page 27).
3. Remove the access panel ("Access panel" on page 31).
4. Disconnect any external cables that are connected to the expansion board.
5. Remove the PCI riser cage ("PCI riser cage" on page 33).
6. Disconnect any internal cables that are connected to the expansion board.
