HP ProLiant DL380 G7 - Full-Length Expansion Board

Removal and replacement procedures 58

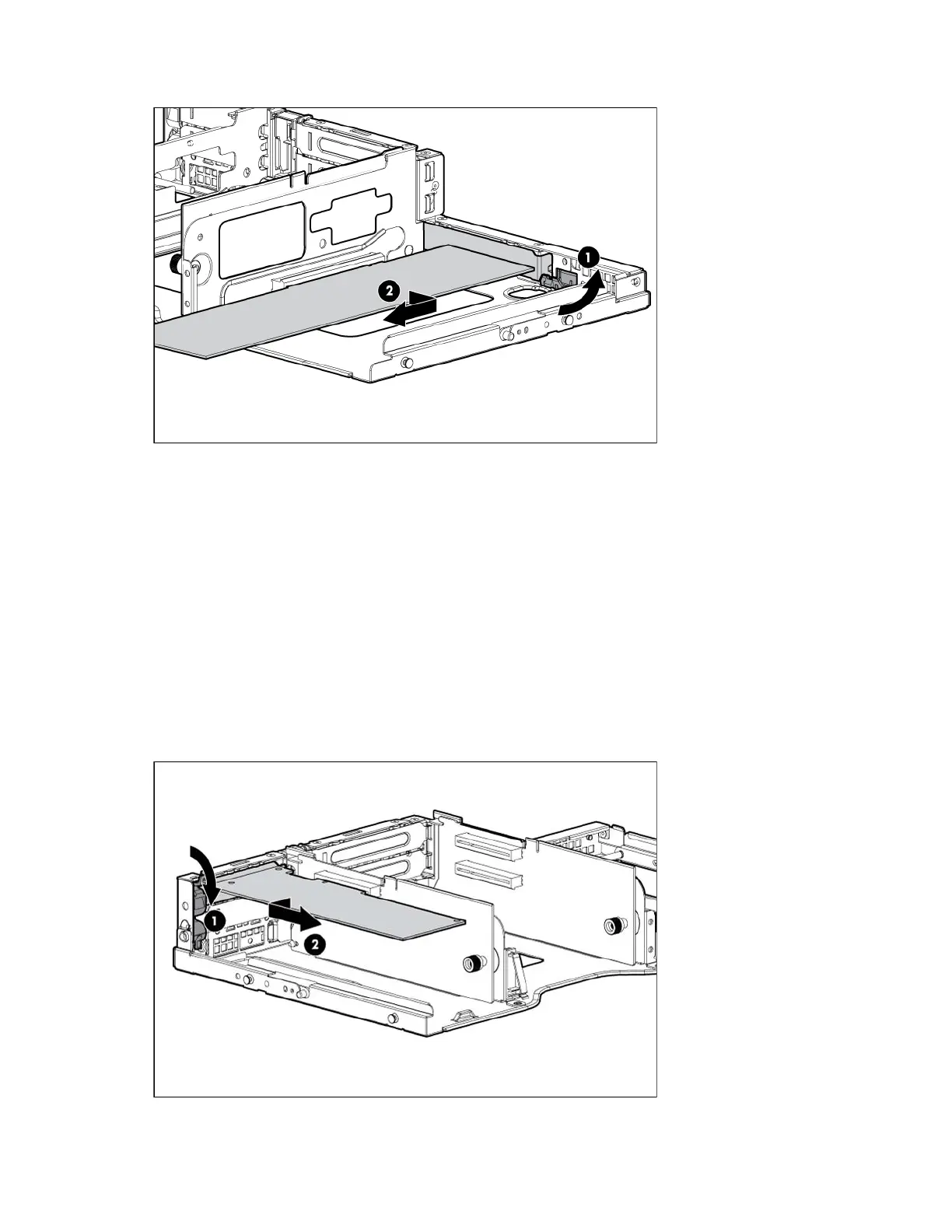

7. Remove the expansion board.
To replace the component, reverse the removal procedure.
Full-length expansion board
To remove the component:
1. Power down the server (on page 26).
2. Extend the server from the rack (on page 27).
3. Remove the access panel ("Access panel" on page 31).
4. Disconnect any external cables that are connected to the expansion board.
5. Remove the PCI riser cage ("PCI riser cage" on page 33).
6. Disconnect any internal cables that are connected to the expansion board.
7. Remove the expansion board.
