Removal and replacement procedures 59
To replace the component, reverse the removal procedure.
Heatsink
To remove the heatsink:
1. Power down the server (on page 26).
2. Extend the server from the rack (on page 27).
3. Remove the access panel ("Access panel" on page 31).
4. If full-length expansion boards are installed, remove the PCI riser cage.
5. Remove the air baffle ("Air baffle" on page 32).

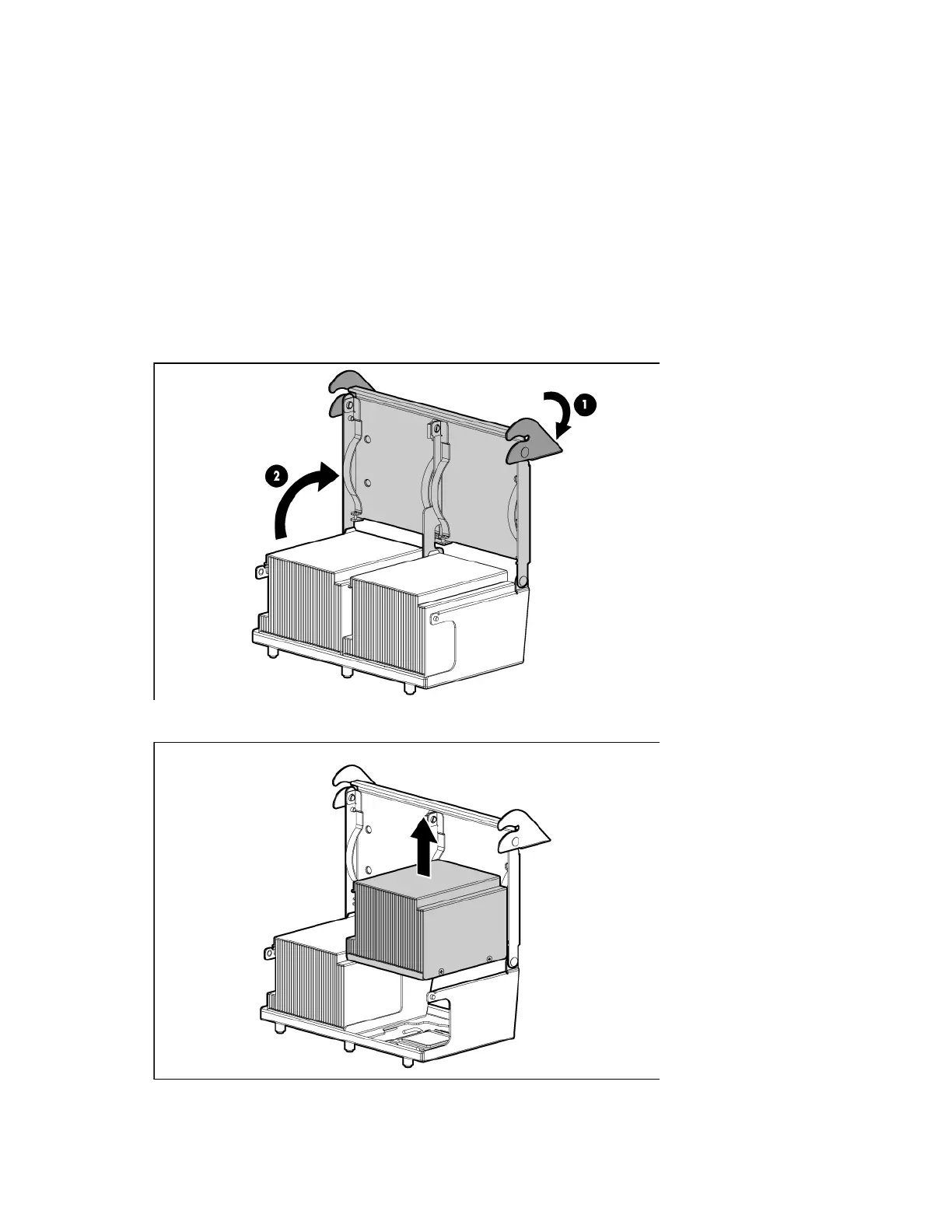

6. Open the heatsink retaining bracket.
7. Remove the heatsink.
