HP ProLiant DL380 G7 - Page 49

Removal and replacement procedures 49

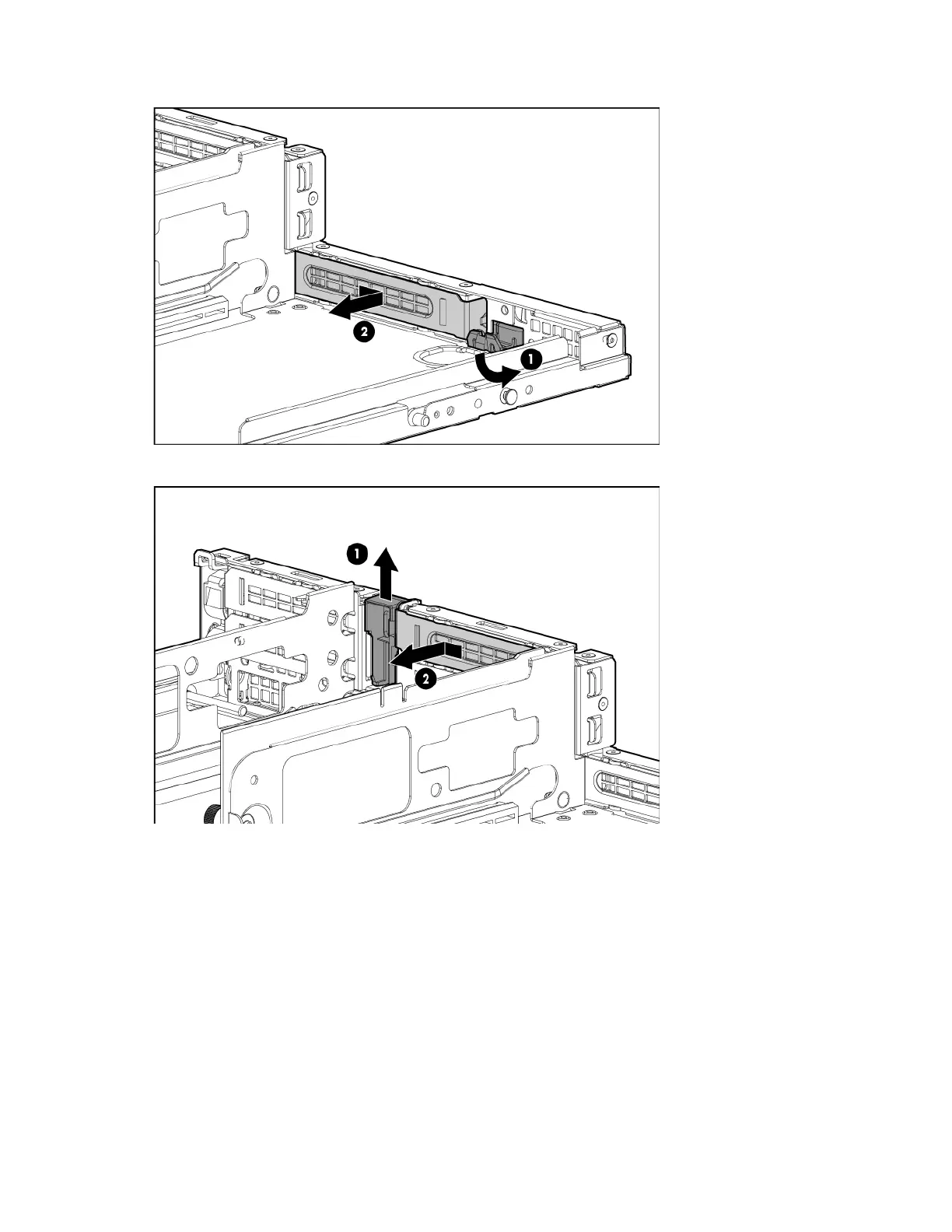

o To remove slot cover 1 or 4, push in on the retainer to release it, and then slide out the cover.
o To remove slot covers 2 and 3, lift up on the latch, remove the latch, and then remove the cover.
