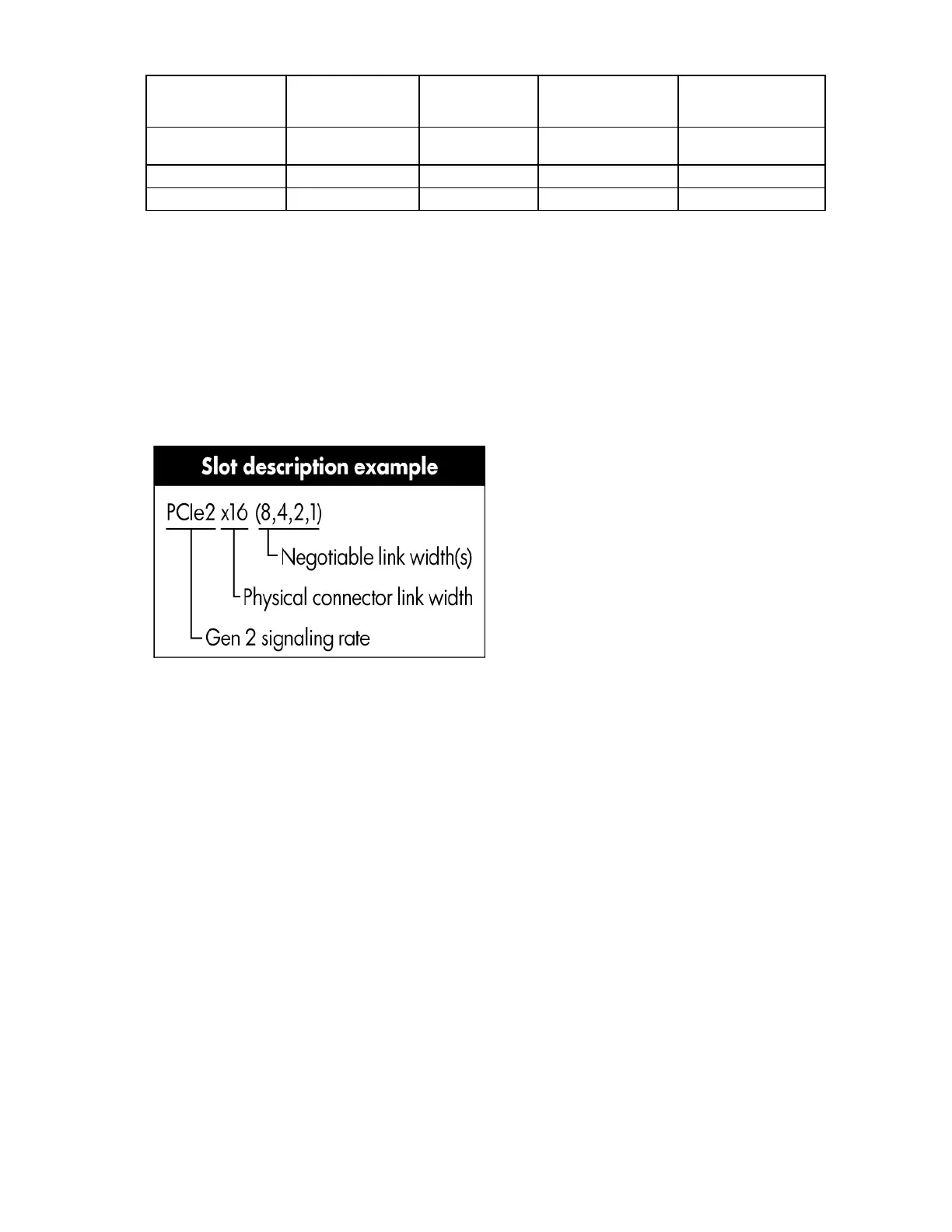

HP ProLiant DL380 G7 - Page 93

Component identification 93
Secondary
(slot - form factor)
Primary
(slot - form factor)
PCIe2 riser
slot description
PCIe2 x16 riser
slot description
PCIe2/PCI-X riser
slot description
4 - FL/FH
1 - FL/FH
PCIe2 x16 (8,4,1)
PCIe2 x16
(16,8,4,1)
PCI-X 64 bit/133 MHz
5 - LP
2 - HL/FH PCIe2 x8 (4,1) — PCIe2 x16 (8,4,1)
6 - LP
3 - HL/FH PCIe2 x8 (4,1) — PCIe2 x8 (4,1)
Notes:
• "Primary" denotes the risers are installed in the primary riser connector.
• "Secondary" denotes the risers are installed in the secondary riser connector.
• Installing the risers listed in the table above in either the primary or secondary riser connectors
determines the form factor of the PCI cards supported by those risers.
• FL/FH denotes full-length, full-height. HL/FH denotes half-length, full-height. LP denotes low profile.
• The PCIe2 x16 riser supports a maximum power of 150 W with an HP power cable. This cable must be
used for PCIe card wattages greater than 75 W.
