HP ProLiant DL380 - Cabling Configurations

HP ProLiant DL380 Generation 3 Server High-Density Deployment
23
Cabling
Configurations
Figures 1 through 3 show three possible cabling configurations. The configurations shown do not
include every possible combination.

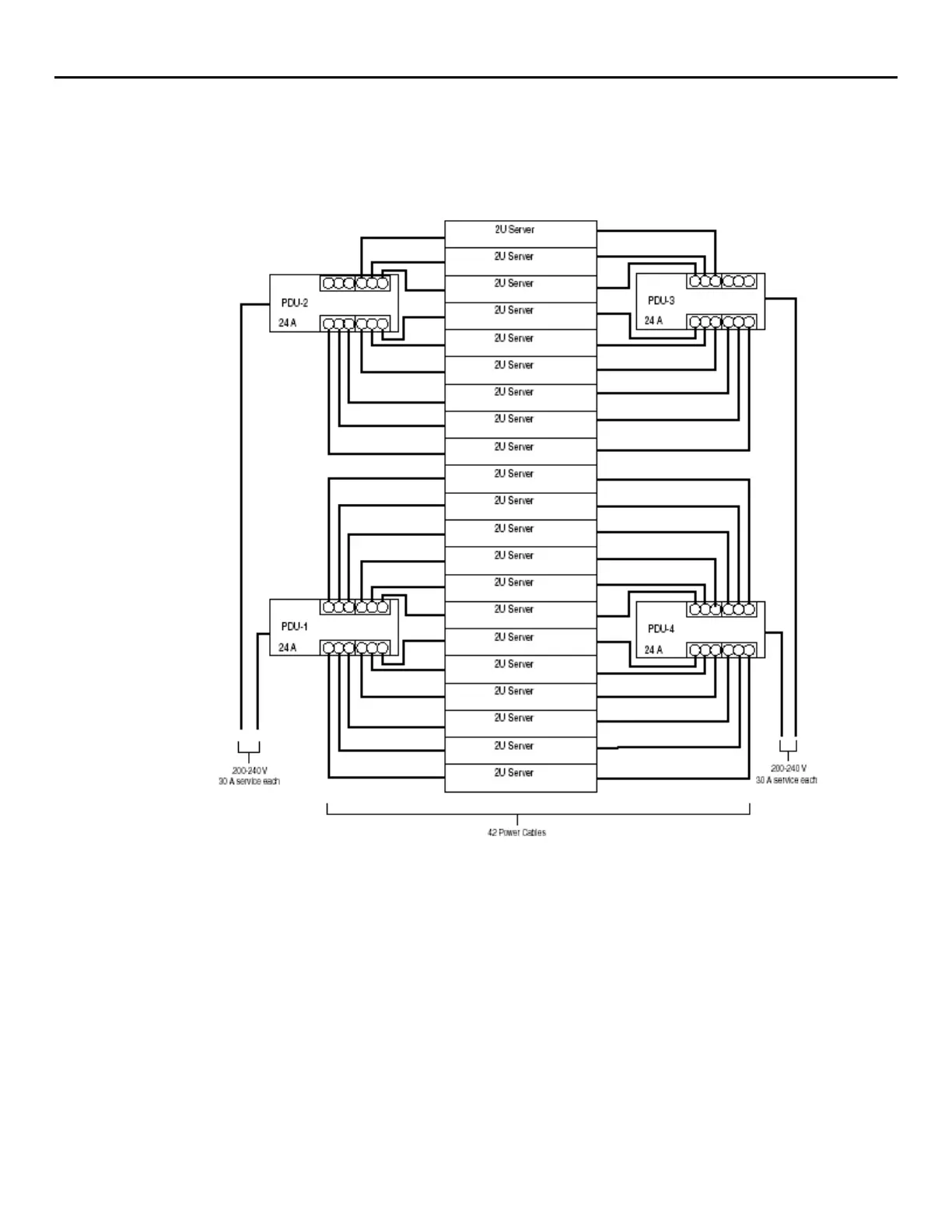

Figure 1. Four high-voltage PDUs (24A)
