92 HP ProLiant DL385 Server User Guide
Embedded duplex SCSI cabling
In the embedded duplex cabling configuration, the embedded Smart Array 6i
Controller controls up to six hard drives through two SCSI buses: one bus with
up to two drives and the other bus with up to four drives.
NOTE: This specific cabling configuration does not support external
VHDCI.
NOTE: Optional SCSI terminator board and optional long SCSI cables
are available in the SCSI Configuration Option Kit.
NOTE: The short SCSI cables are identical.

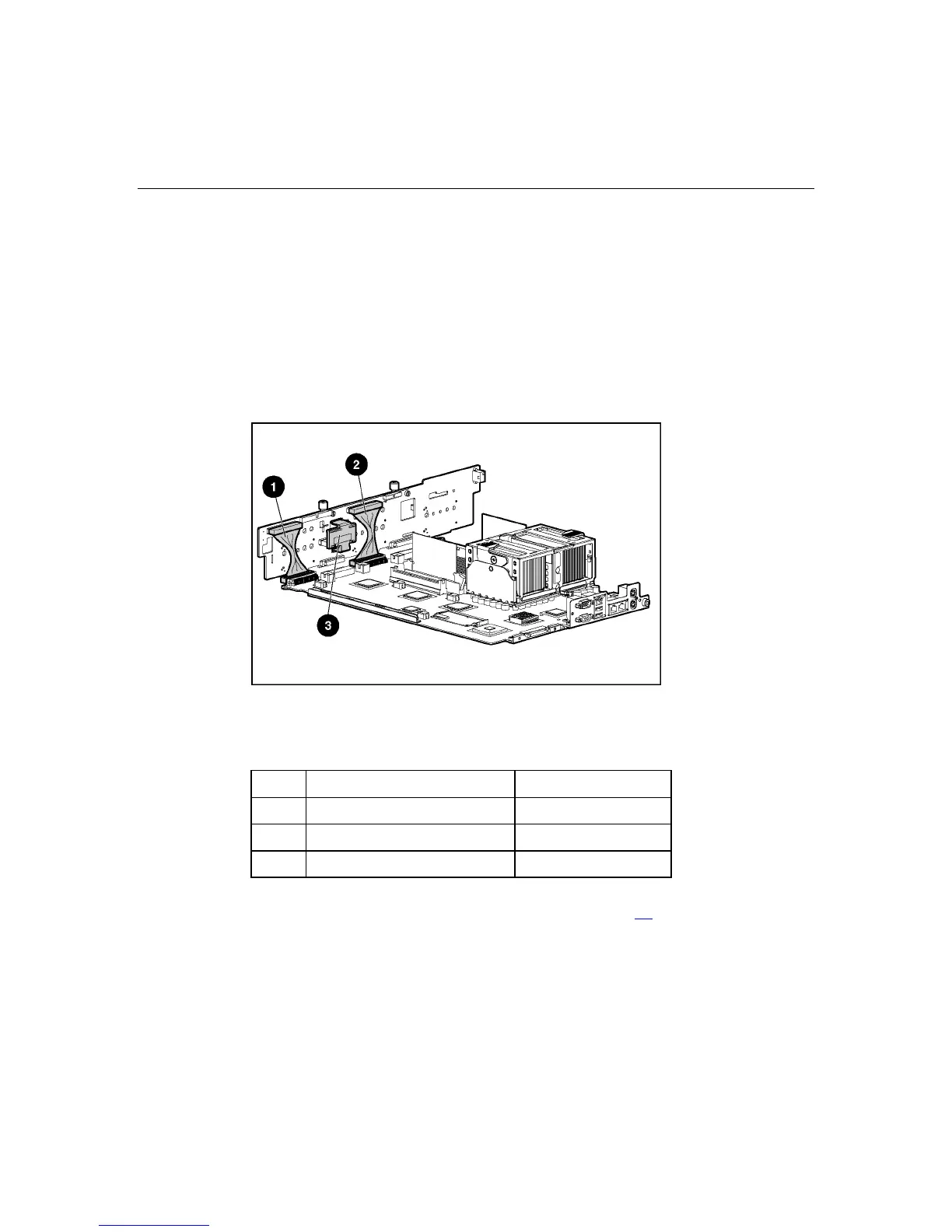

Item Component description SCSI IDs managed
1 Short SCSI cable 0, 1
2 Short SCSI cable 2, 3, 4, 5
3 Optional terminator board N/A
Refer to "Installing the SCSI terminator board (on page 96)" for SCSI terminator
board installation procedures.
