Removal and replacement procedures 52
c.

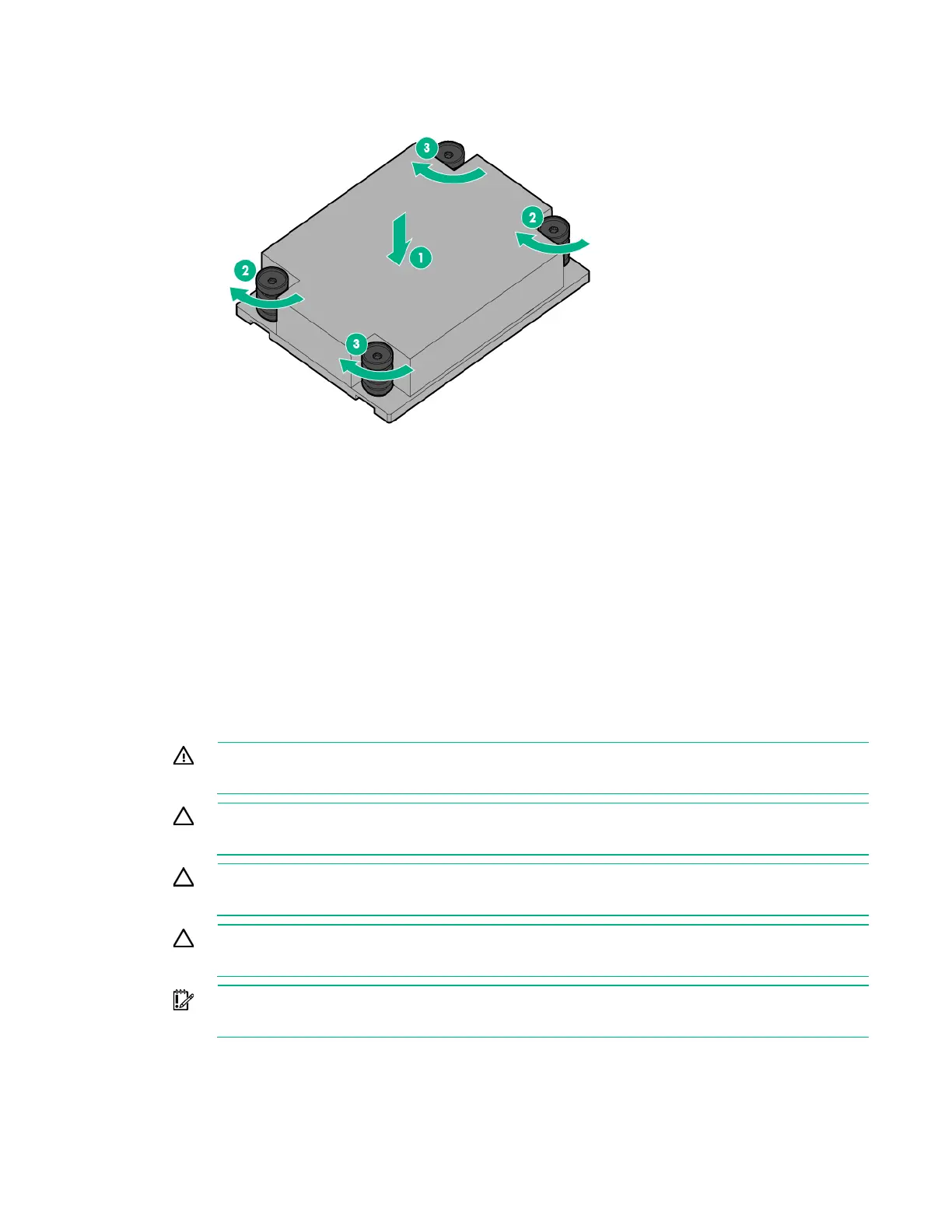

Finish the installation by completely tightening the screws in the same sequence.
4. Install the air baffle.
5. Install the access panel.
6. Do one of the following:
o Slide the server into the rack.
o Install the server into the rack.
7. Connect each power cord to the server.
8. Connect each power cord to the power source.
9. Press the Power On/Standby button.
The server exits standby mode and applies full power to the system. The system power LED
changes from amber to green.
Processor blank
WARNING:
To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION:
To avoid damage to the processor and system board, only authorized personnel
should attempt to replace or install the processor in this server.
CAUTION: To prevent possible server malfunction and damage to the equipment,
multiprocessor configurations must contain processors with the same part number.
CAUTION:
To prevent possible server overheating, always populate processor socket 2 with
a processor and a heatsink or a processor socket cover and a processor blank.
IMPORTANT: Processor socket 1 must be populated at all times or the server does not
function.
To remove the component:
1. Power down the server (on page 27).
2. Remove all power:
