Component identification 88

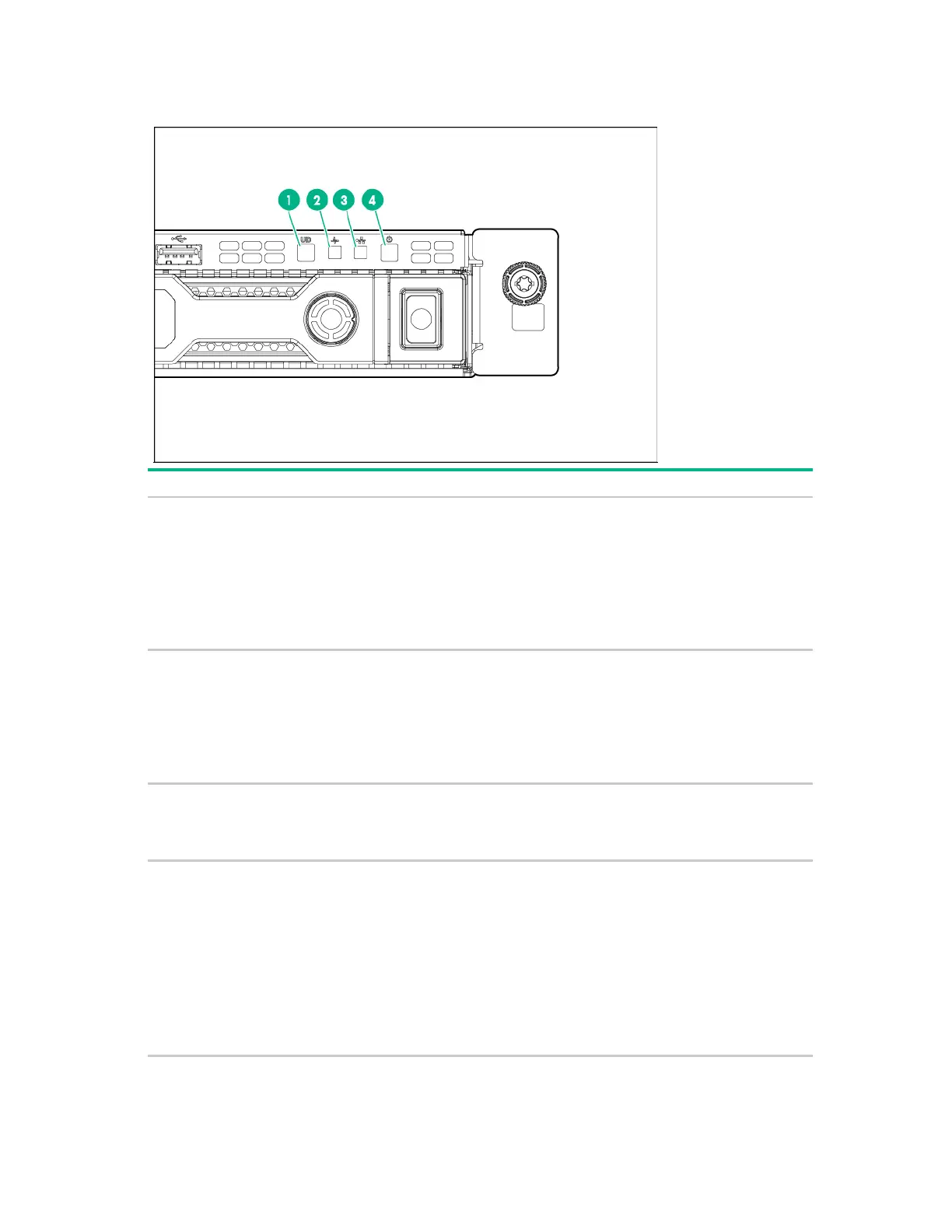

Front panel LEDs and buttons
Item Description Status
1
UID button/LED
Solid blue = Activated
Flashing blue:
•
1 flash per second = Remote management or firmware upgrade
in progress
•
4 flashes per second = iLO manual reboot sequence initiated
•
8 flashes per second = iLO manual reboot sequence in
progress
Off = Deactivated
2
Health LED
Solid green = Normal
Flashing green (1 flash per second) = iLO is rebooting
Flashing amber = System degraded
Flashing red (1 flash per second) = System critical
If the health LED indicates a degraded or critical state, review the
system IML ("Integrated Management Log" on page 83) or use iLO
("HPE iLO" on page 81) to review the system health status.
3
NIC status LED
Solid green = Link to network
Flashing green (1 flash per second) = Network active
Off = No network activity
4
Power On/Standby button
and system power LED
Solid green = System on
Flashing green (1 flash per second) = Performing power on
sequence
Solid amber = System in standby
Off = No power present
If the system power LED is off, verify the following conditions:
•
Facility power is present.
•
The power supply is installed and is working correctly.
•
The power cord is attached and is connected to a power source.
•
The front I/O cable is connected.
When all four LEDs described in this table flash simultaneously, a power fault has occurred. For more
information, see "Power fault LEDs ("Front panel LED power fault codes" on page 89)."
