Hardware
options installation
15
5.
Remove four s
pare drive scr
ews from the rear
side of the panel d
oor.
6.

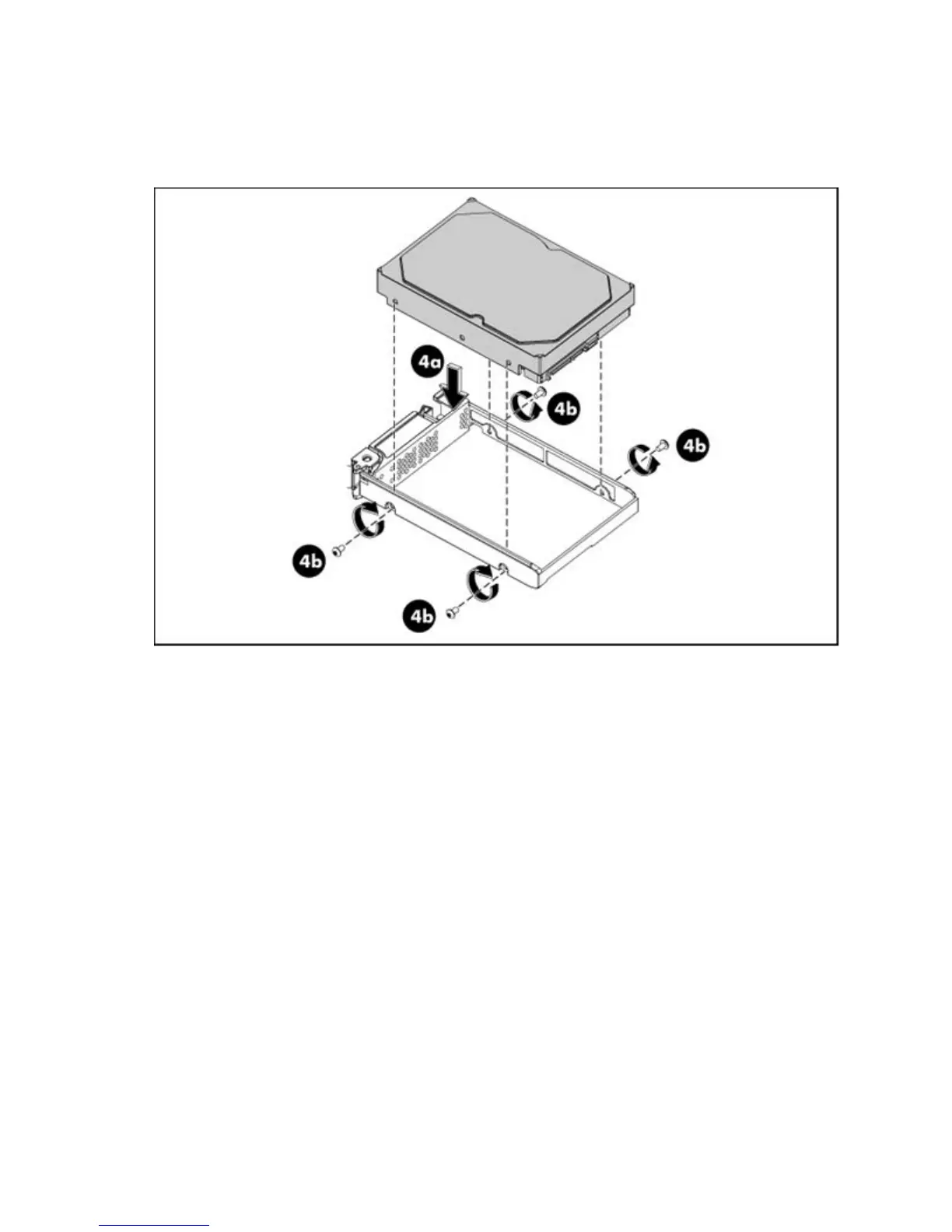

Install the drive in the drive carrier:
a.
Align the drive insid
e the carrier.
b.
Use the screw
s to secure the d
rive in the carri
er.
7.
Install the drive in th
e drive
bay:
a.
Slide the drive ass
embly into the drive bay.
14
16
