Remove the failed SAS Expander card.
10. Disconnect all cables from the failed SAS Expander card.

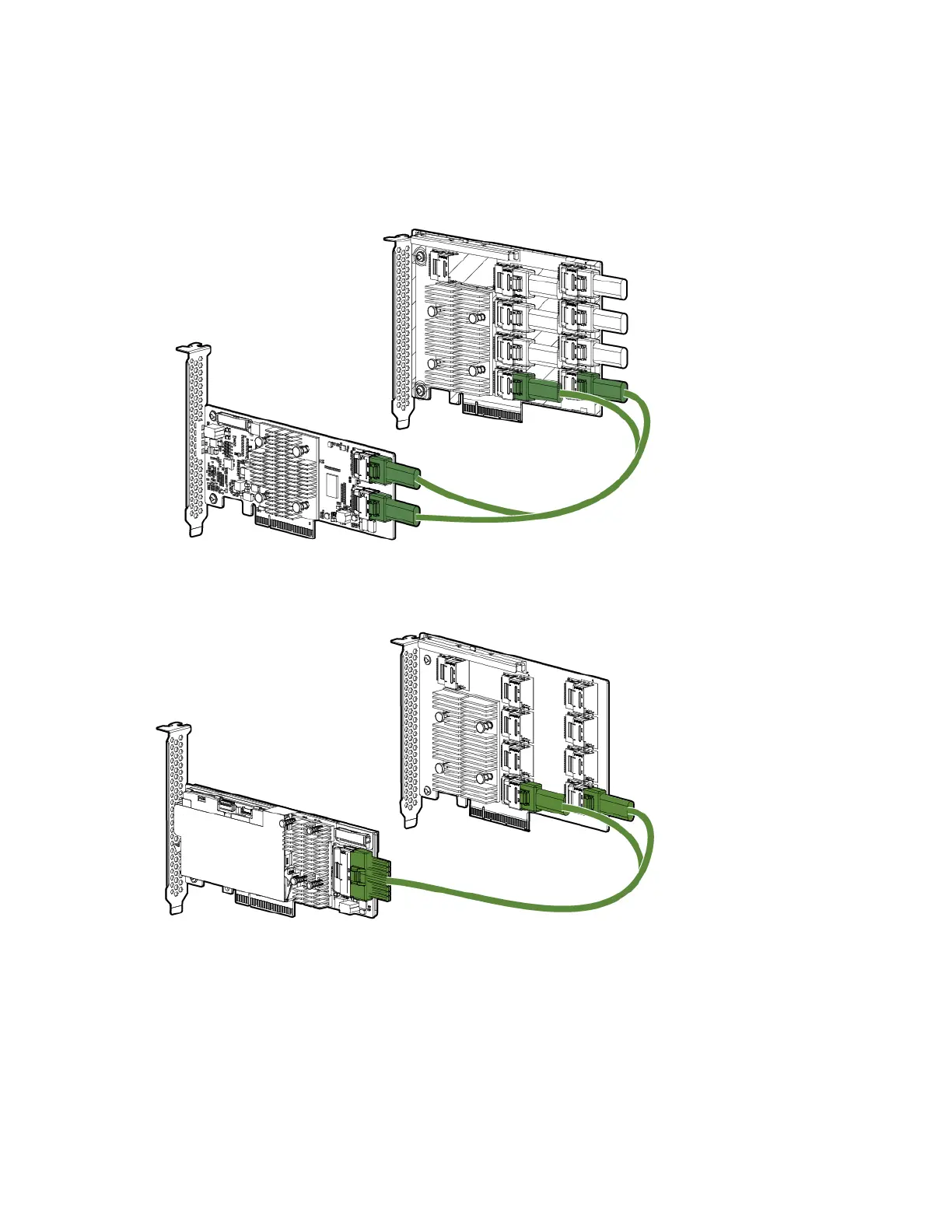

11. Connect the new SAS Expander card to the Smart Array controller:
o If one SAS Expander card is installed, do one of the following:
— Connect the HBA to SAS Expander Mini-SAS X cable (788456-001) from the Host Bus
Adapter to the SAS Expander card. Connect port 1 to port 1 and port 2 to port 2.
— Connect the Smart Array to SAS Expander Mini-SAS Y cable (779300-001) from the Smart
Array controller port 1 to SAS Expander card ports 1 and 2.
