Removal and replacement procedures 46
2.
Power down the server (on page 26).
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Do one of the following:
o For tower models, place the server on a flat, level surface with the access panel facing up.
o For rack models, extend the server from the rack (on page 28).
5. Remove the access panel ("Access panel" on page 29).
6. Remove the air baffle ("Air baffle" on page 30).

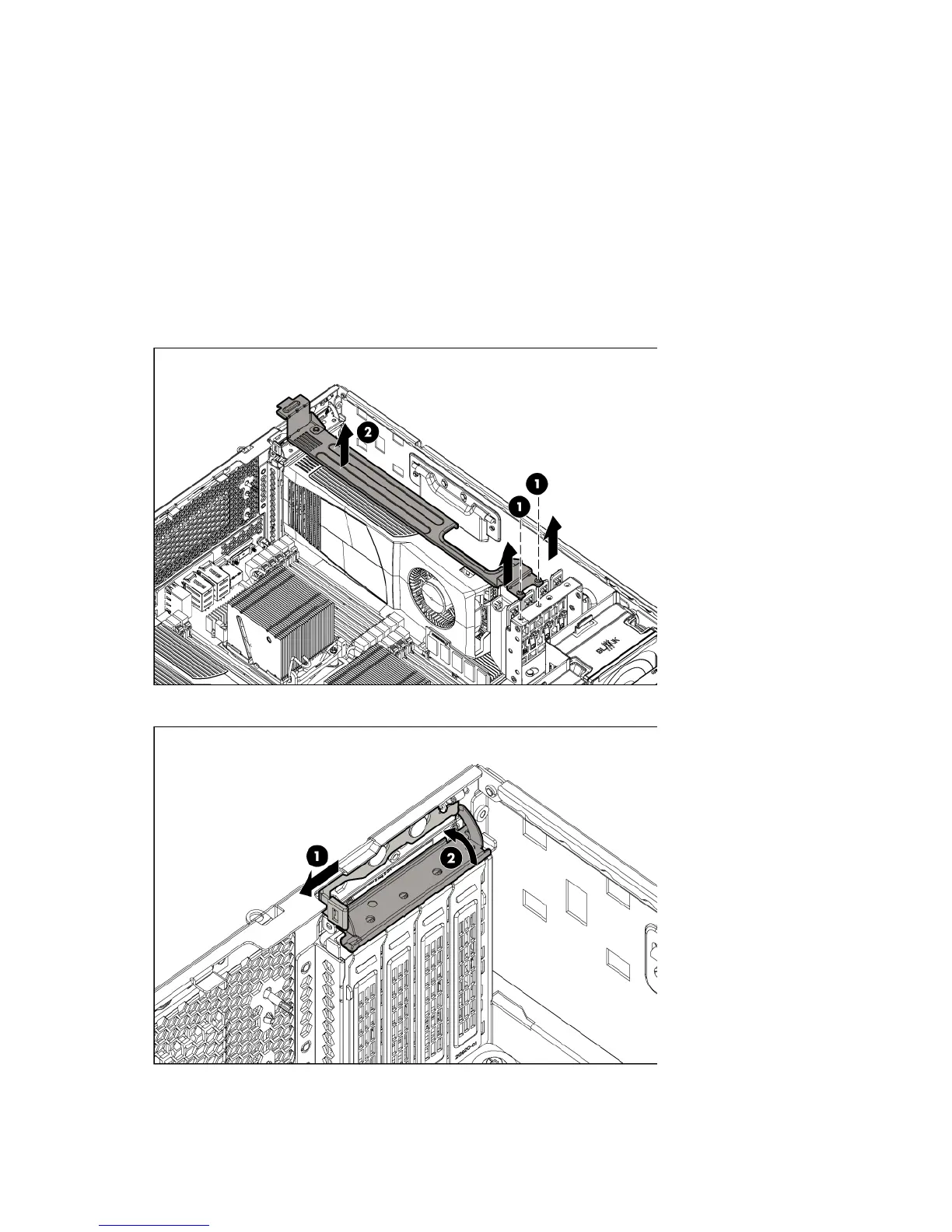

7. Loosen the screws, and then remove the graphic card bracket.
8. Open the PCI retainer latch.
