Removal and replacement procedures 45
7.

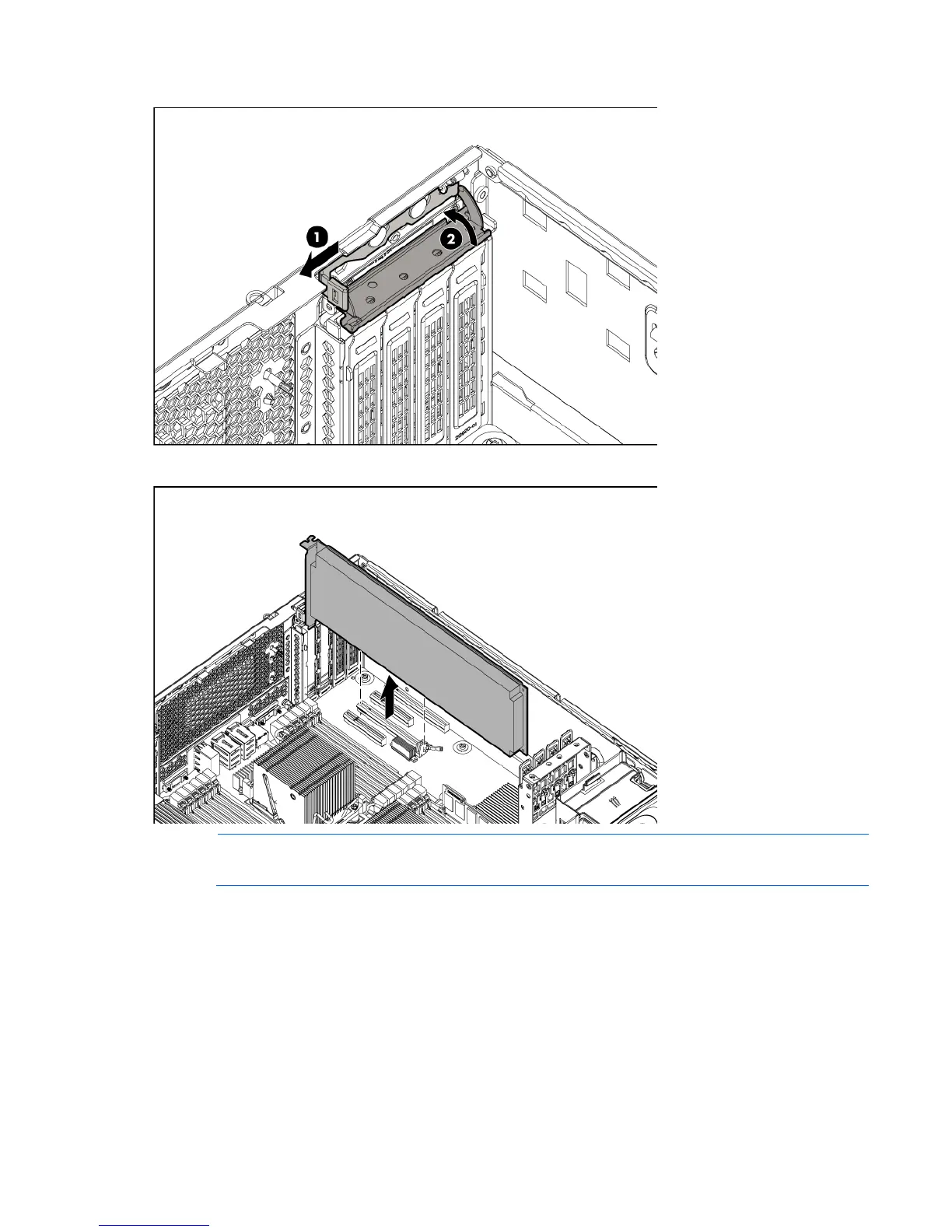

Open the PCI retainer latch.
8. Remove the expansion board.
NOTE: If removing an expansion board from slots 3, 6 or 8, first release the retaining lever on
the system board and then remove the card from the system.
To replace the component, reverse the removal procedure.
Graphic card adapter
To remove the component:
1. Do one of the following:
o For tower models, open and remove the bezel ("Remove the tower bezel" on page 27).
o For rack models, if installed, remove the security bezel (on page 27).
