HP ProLiant ML350p Gen8 Maintenance And Service Guide

Component identification 89
1 - Amber 2 - Green 3 - Green Interpretation
Off
Flashing 0.5 Hz Flashing 0.5 Hz The cache microcontroller is executing from within its
boot loader and receiving new flash code from the host
controller.
Off
Flashing 1 Hz Flashing 1 Hz The cache module is powering up, and the capacitor
pack is charging.
Off
Off Flashing 1 Hz The cache module is idle, and the capacitor pack is
charging.
Off
Off
On
The cache module is idle, and the capacitor pack is
charged.
Off
On On The cache module is idle, the capacitor pack is charged,
and the cache contains data that has not yet been
written to the drives.
Off
Flashing 1 Hz Off A backup is in progress.
Off
On Off The current backup is complete with no errors.
Flashing 1 Hz
Flashing 1 Hz Off The current backup failed, and data has been lost.
Flashing 1 Hz
Flashing 1 Hz On A power error occurred during the previous or current
boot. Data might be corrupt.
Flashing 1 Hz
On Off An overtemperature condition exists.
Flashing 2 Hz
Flashing 2 Hz Off The capacitor pack is not attached.
Flashing 2 Hz
Flashing 2 Hz On The capacitor has been charging for 10 minutes, but
has not reached sufficient charge to perform a full
backup.
On
On Off The current backup is complete, but power fluctuations
occurred during the backup.
On
On On The cache module microcontroller has failed.

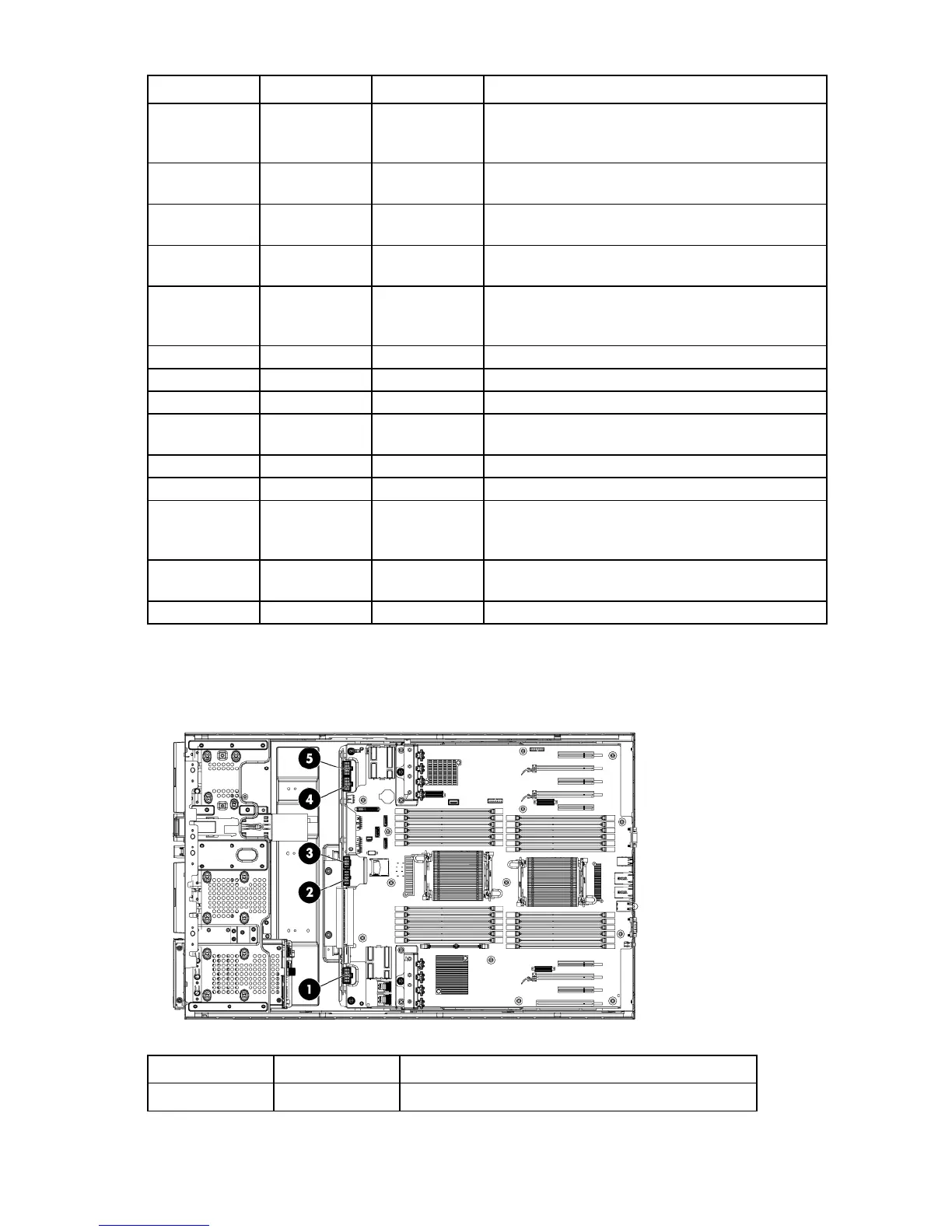

RPS riser board connectors
Item Connector Description
1
J7 Graphic card power connector

HP ProLiant ML350p Gen8 Specifications

General

Processor	Intel Xeon E5-2600 series
Maximum Processors	2
Chipset	Intel C600 Series
Memory Type	DDR3 RDIMM or UDIMM
Maximum Memory	768 GB
Memory Slots	24 DIMM slots
RAID Support	HP Smart Array P420i/1GB FBWC
Storage Controller	HP Smart Array P420i/1GB FBWC
Network Controller	HP Ethernet 1Gb 4-port 331FLR Adapter
Form Factor	Tower
Storage	SAS, SATA, SSD
Network	Gigabit Ethernet
Power Supply	460W, 750W, 1200W
Power Supply Options	Redundant Power Supplies
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
