HP ProLiant ML350p Gen8 Maintenance And Service Guide

Removal and replacement procedures 51
8.

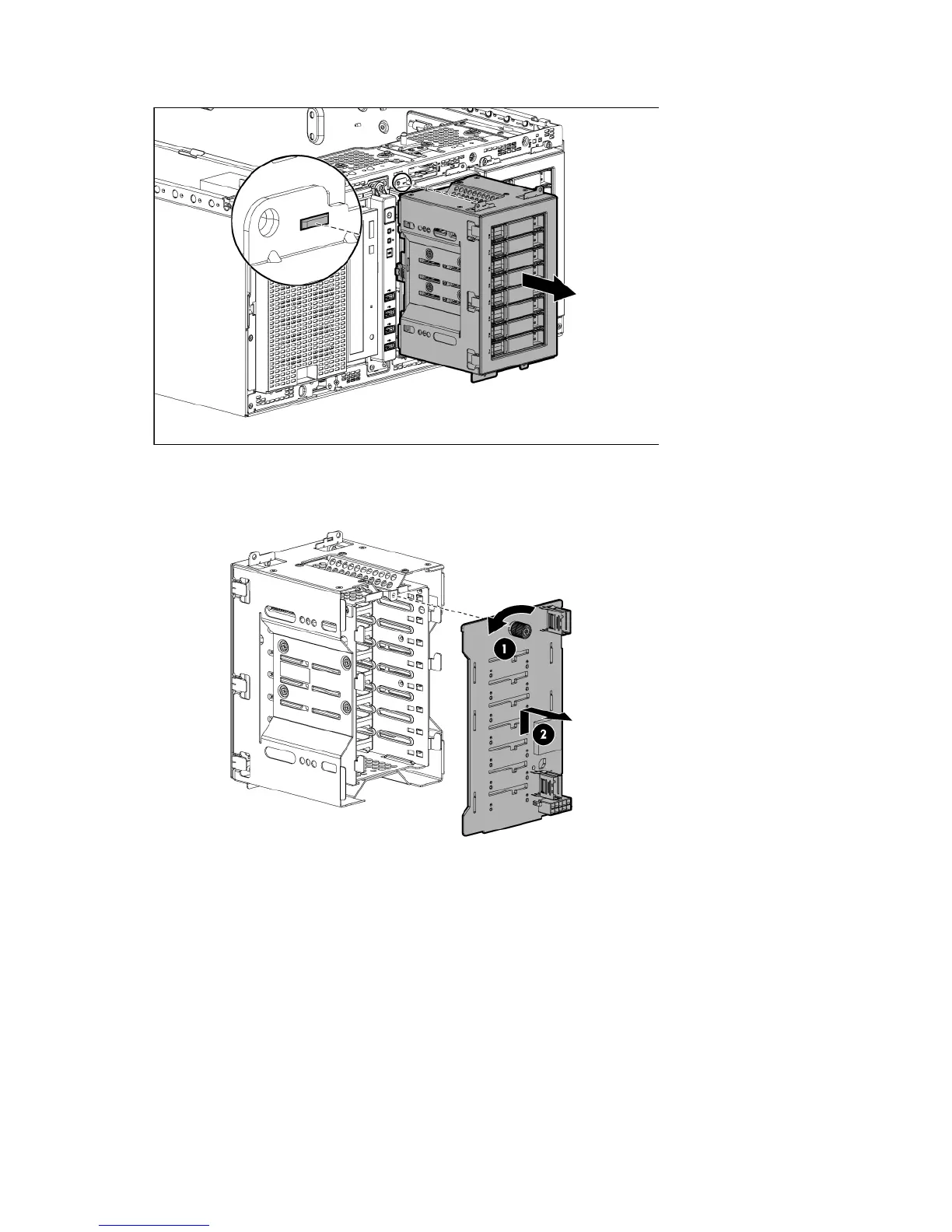

Remove the SFF drive cage.
9. Remove all drives from the drive cage ("Drive" on page 36).
10. Loosen the thumbscrew on the drive backplane and remove it from the cage.
To replace the component, reverse the removal procedure.
LFF drive backplane
To remove the component:
1. Do one of the following:
o For tower models, open and remove the bezel ("Remove the tower bezel" on page 27).
o For rack models, if installed, remove the security bezel (on page 27).
2. Power down the server (on page 26).
3. Remove all power:

HP ProLiant ML350p Gen8 Specifications

General

Processor	Intel Xeon E5-2600 series
Maximum Processors	2
Chipset	Intel C600 Series
Memory Type	DDR3 RDIMM or UDIMM
Maximum Memory	768 GB
Memory Slots	24 DIMM slots
RAID Support	HP Smart Array P420i/1GB FBWC
Storage Controller	HP Smart Array P420i/1GB FBWC
Network Controller	HP Ethernet 1Gb 4-port 331FLR Adapter
Form Factor	Tower
Storage	SAS, SATA, SSD
Network	Gigabit Ethernet
Power Supply	460W, 750W, 1200W
Power Supply Options	Redundant Power Supplies
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
