Component identification 79
Item Description Status
1
Power On/Standby button
and system power LED
Solid green = System on
Flashing green (1 Hz/cycle per sec) = Performing power on sequence
Solid amber = System in standby
Off = No power present*
2
NIC status LED
Solid green = Link to network
Flashing green (1 Hz/cycle per sec) = Network active
Off = No network activity
3
Health LED Solid green = Normal
Flashing amber = System degraded
Flashing red (1 Hz/cycle per sec) = System critical
Fast-flashing red (4 Hz/cycles per sec) = Power fault**
4
UID button/LED Solid blue = Activated
Flashing blue (1 Hz/cycle per sec) = Remote management or
firmware upgrade in progress
Off = Deactivated
*Facility power is not present, power cord is not attached, no power supplies are installed, power supply failure has
occurred, or the power button cable is disconnected.
**To identify components in a degraded or critical state, see the Systems Insight Display LEDs ("Systems Insight Display
assembly" on page 53), check iLO/BIOS logs, and reference the server troubleshooting guide.

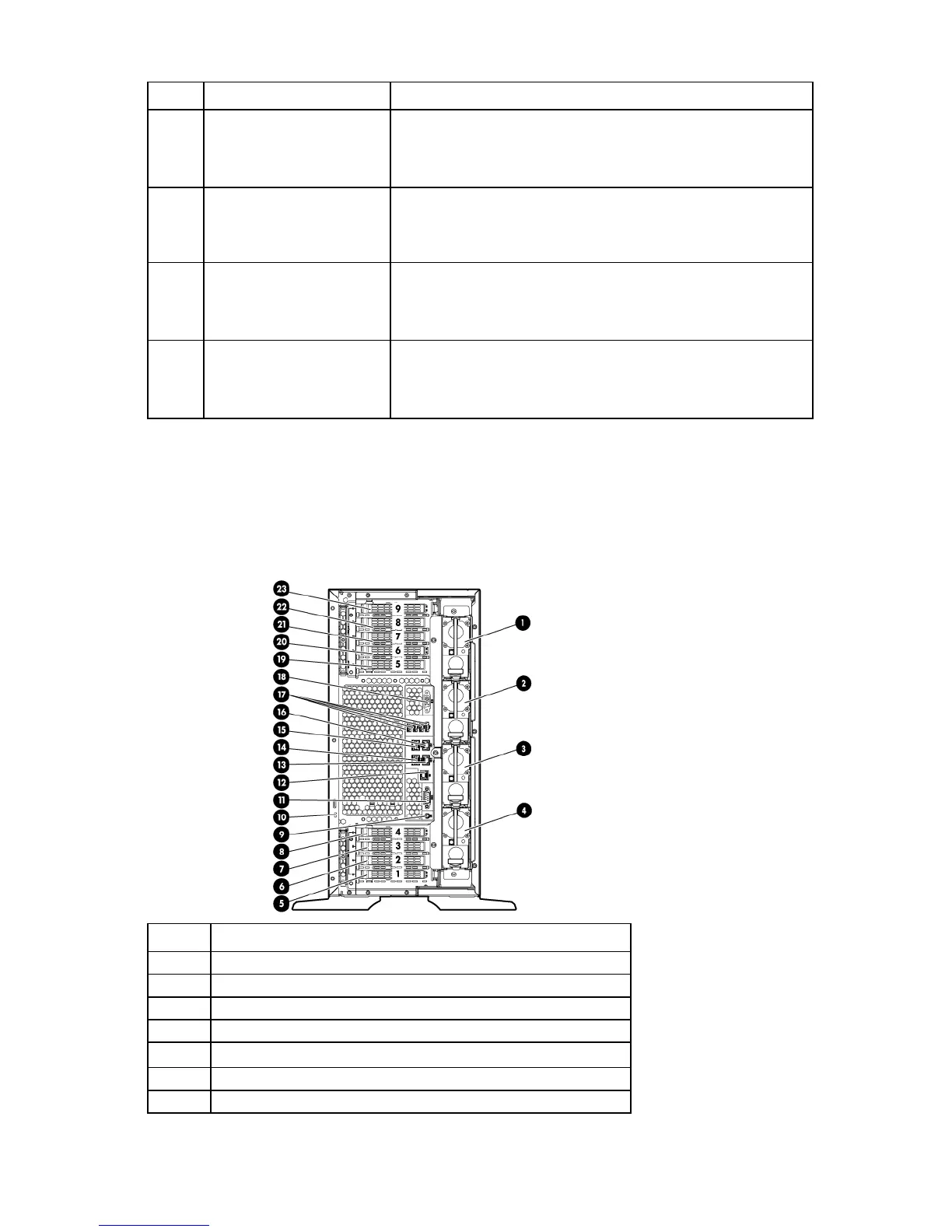

Rear panel components
Item Description
1
Power supply 4
2
Power supply 3
3
Power supply 2
4
Power supply 1
5
PCIe slot 1 (Processor 1)
6
PCIe slot 2 (Processor 1)
7
PCIe slot 3 (Processor 1)
