Component identification 84
Systems Insight Display LEDs

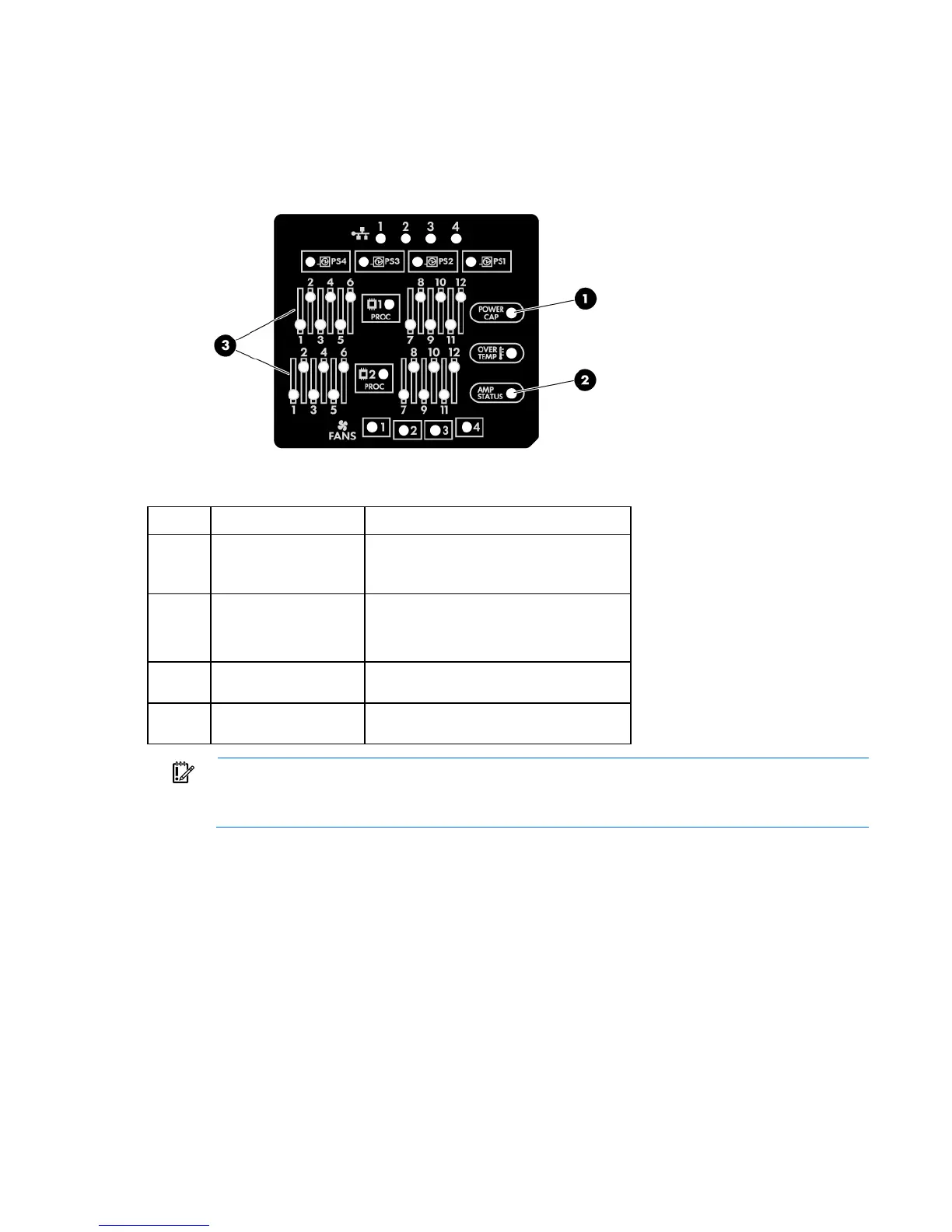

The HP Systems Insight Display LEDs represent the system board layout.
Item Description Status
1
Power cap To determine Power cap status, see
"Systems Insight Display LED combinations
(on page 84)."
2
AMP Status Green = AMP mode enabled
Amber = Failover
Off = AMP mode disabled
3
DIMM LEDs Amber = DIMM error
Off = Normal
All other LEDs Amber = Failure
Off = Normal
IMPORTANT: If more than one DIMM slot LED is illuminated, further troubleshooting is required.
Test each bank of DIMMs by removing all other DIMMs. Isolate the failed DIMM by replacing
each DIMM in a bank with a known working DIMM.
Systems Insight Display LED combinations
When the health LED on the front panel illuminates either amber or red, the server is experiencing a health
event. Combinations of illuminated Systems Insight Display LEDs, the system power LED, and the health LED
indicate system status.
