Removal and replacement procedures 64
b.
Disconnect each power cord from the server.
4. Do one of the following:
o For tower models, place the server on a flat, level surface with the access panel facing up.
o For rack models, extend the server from the rack (on page 28).
5. Remove the access panel ("Access panel" on page 29).
6. Remove the air baffle ("Air baffle" on page 30).

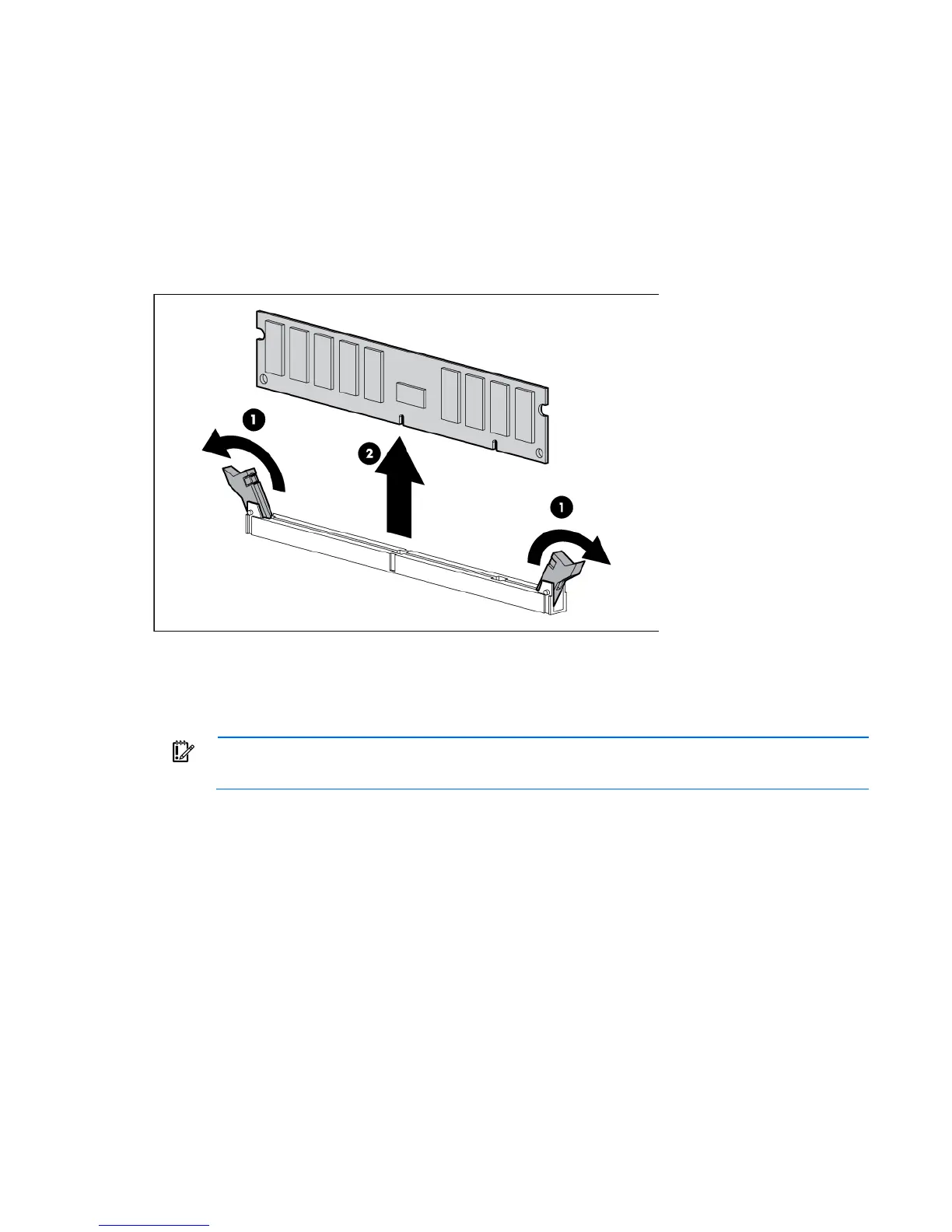

7. Open the DIMM slot latches..
8. Remove the DIMM.
To replace the component, reverse the removal procedure.
System board
IMPORTANT: If replacing the system board or clearing NVRAM, you must re-enter the server
serial number through RBSU.
To remove the component:
1. Do one of the following:
o For tower models, open and remove the bezel ("Remove the tower bezel" on page 27).
o For rack models, if installed, remove the security bezel (on page 27).
2. Power down the server (on page 26).
3. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. Do one of the following:
o For tower models, place the server on a flat, level surface with the access panel facing up.
o For rack models, extend the server from the rack (on page 28).
5. Remove the access panel ("Access panel" on page 29).
