Removal and replacement procedures 52
a.
Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
4. For tower models, do the following:
a. Place the server on a flat, level surface with the access panel facing up.
b. Remove the access panel ("Access panel" on page 29).
5. For rack models, do the following:
a. Extend the server from the rack (on page 28).
b. Remove the access panel ("Access panel" on page 29).
c. Release thumbscrews and remove the rack bezel.
6. Disconnect all cables from the drive backplane.

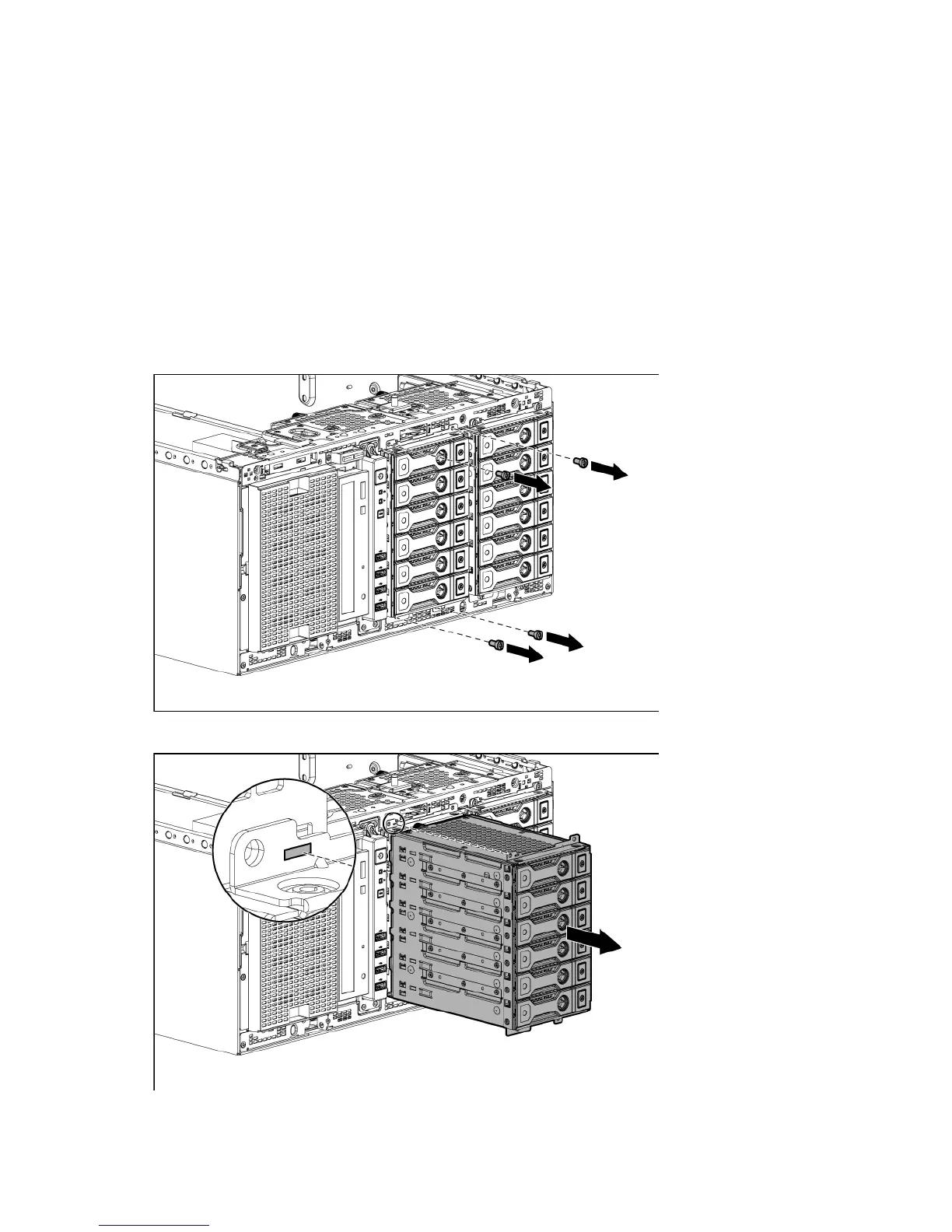

7. Using a T-15 screwdriver, remove the screws that secure the LFF drive cage to the server.
8. Remove the LFF drive cage.
