Installing an internal hard drive
To install an internal hard drive:
1. If a PCIe card is installed, remove it.
2. Insert the hard drive into the drive bracket (1) and secure it by fastening the four screws provided
in the kit (2).

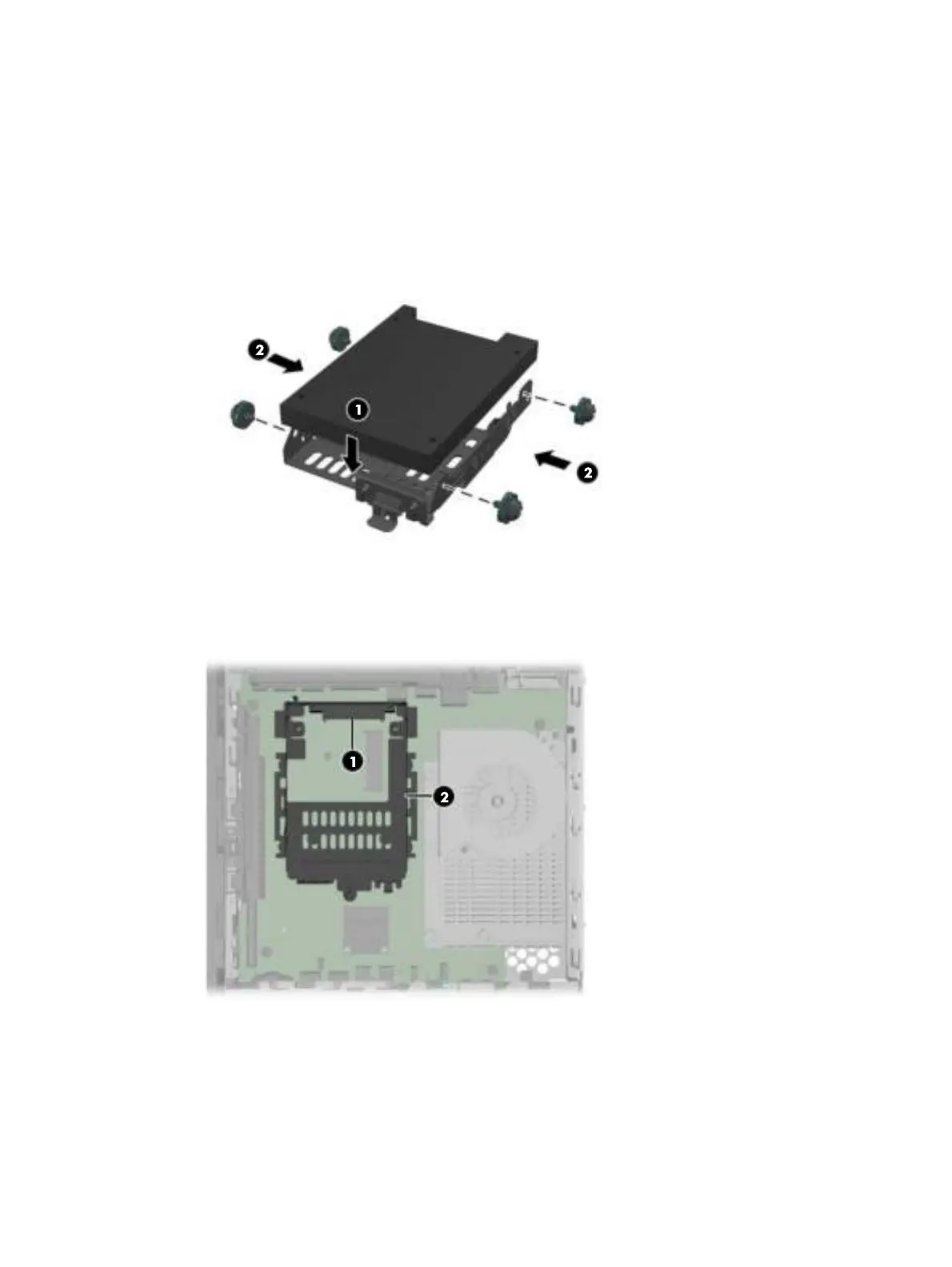

Figure 2-17 Inserting the hard drive into the drive bracket
3. Locate the internal hard drive connector (1) and retention bracket (2) on the system board.
Figure 2-18 Locating the hard drive connector and retention bracket on the system board
22 Chapter 2 Hardware changes
