3. Slide the side of the mounting device attached to the thin client (1) over the other side of the
mounting device (2) on the device on which you want to mount the thin client. An audible 'click'
indicates a secure connection.

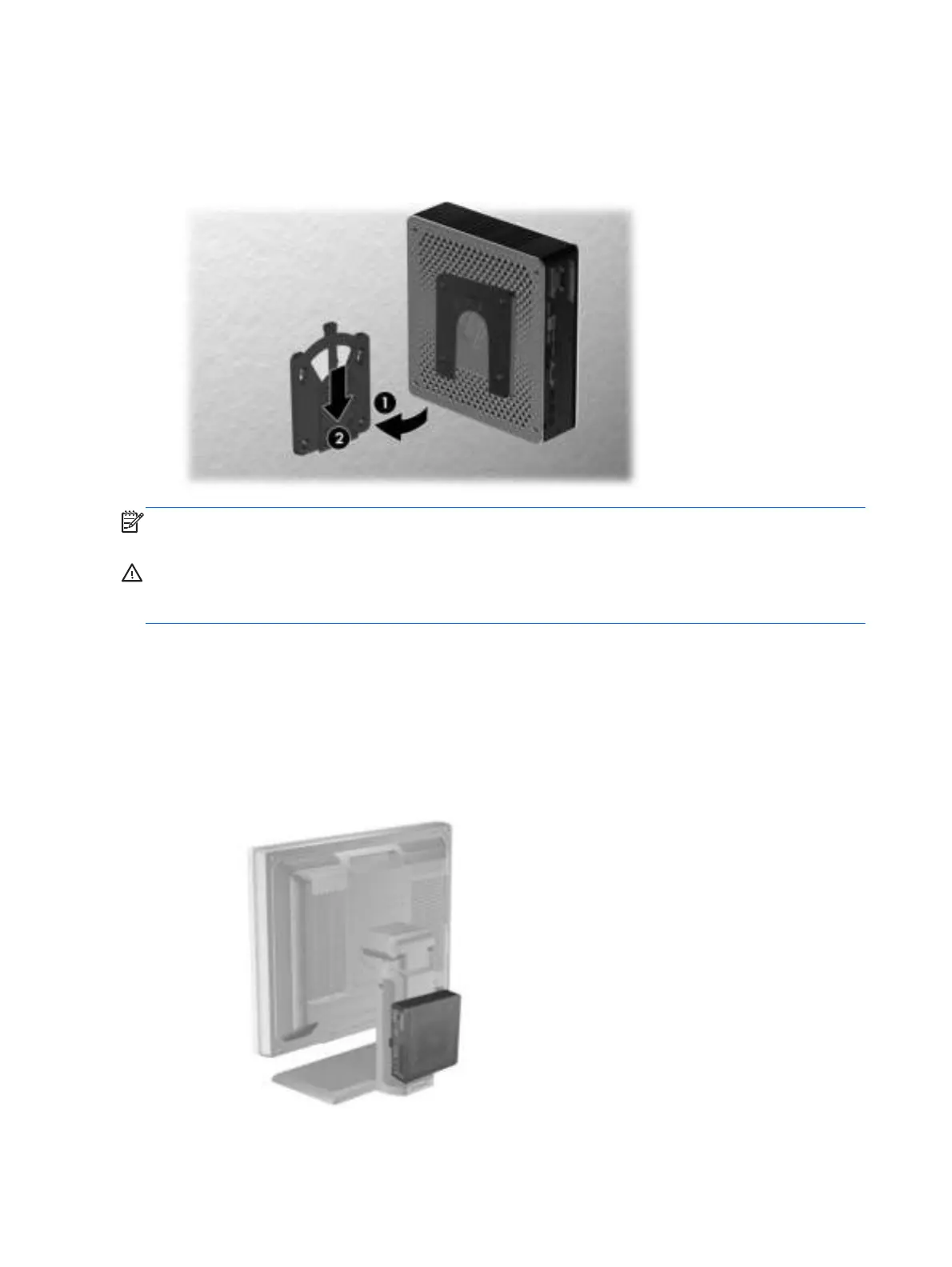

Figure C-4 Connecting the thin client
NOTE: When attached, the HP Quick Release automatically locks in position. You only need to slide
the lever to one side to remove the thin client.
CAUTION: To ensure proper function of the HP Quick Release and a secure connection of all
components, make sure both the release lever on one side of the mounting device and the rounded
opening on the other side face upward.
Supported mounting options
The following illustrations demonstrate some of the supported mounting options for the mounting
bracket.
●
You can mount the thin client on the back of a flat panel monitor stand.
Figure C-5 Thin client mounted on back of monitor stand
●
You can mount the thin client on a wall.
32 Appendix C Mounting the thin client
