3. Align the connector on the flash memory module with the socket on the system board and press
the flash memory module into the socket.
NOTE: A flash memory module can be installed in only one way. Line up the hole in the flash
memory module with the retention post on the system board.

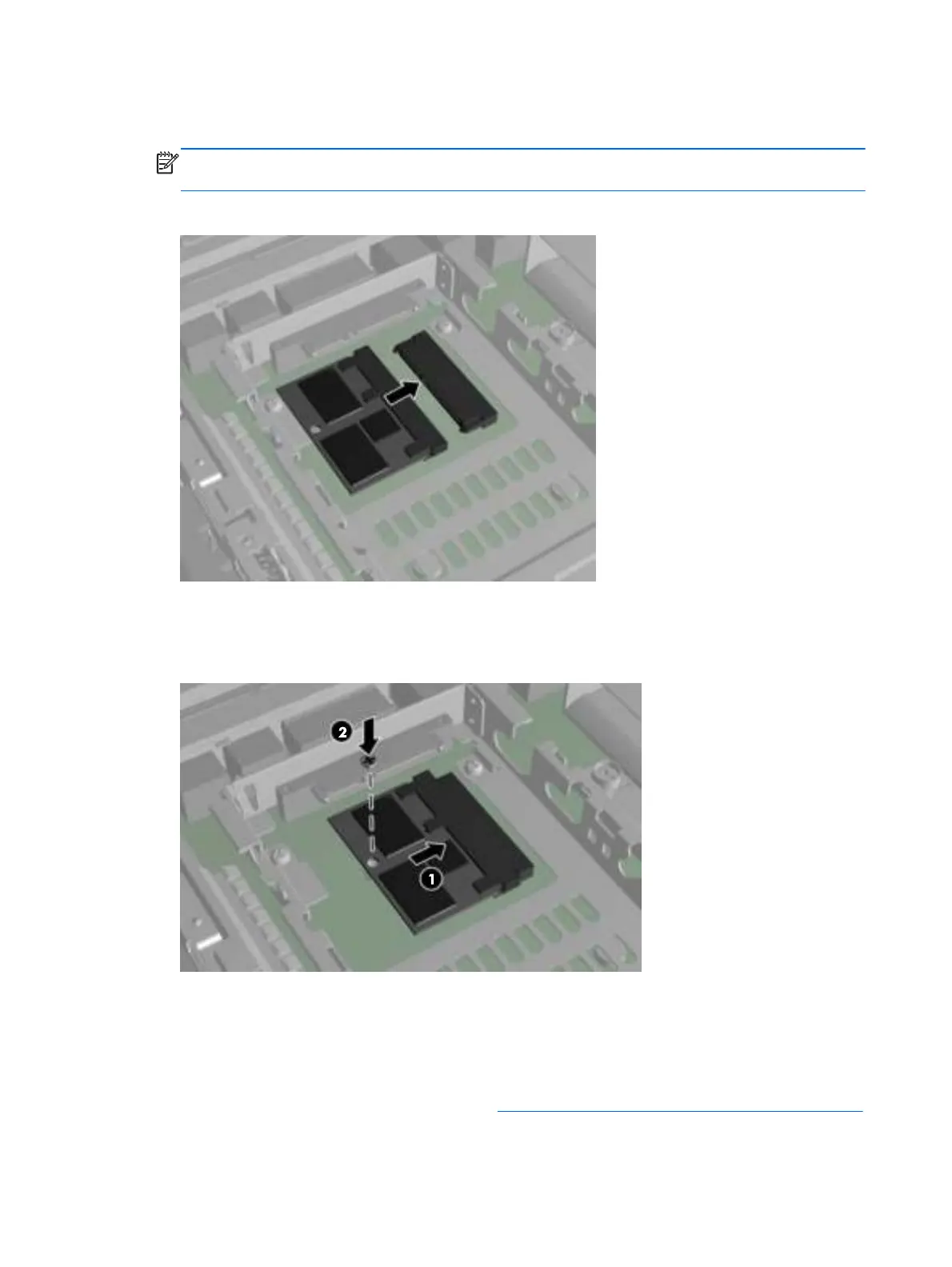

Figure 2-13 Inserting the flash memory module
4. Press the module connectors firmly into the flash memory module socket (1), making sure that the
retention post on the system board is aligned with the hole in the module.
Figure 2-14 Securing the flash memory module
5. Insert the screw provided in the flash memory module option kit through the hole in the module
into the retention post (2) and tighten to secure the module.
Replacing an internal hard drive
Before beginning the replacement process, review General hardware installation sequence on page 10
for procedures you should follow before and after installing or replacing hardware.
20 Chapter 2 Hardware changes
