HP t610 Series Hardware Reference Guide

To install a PCIe card:
1. Press down on the plastic blank tab and pull it out of the chassis.

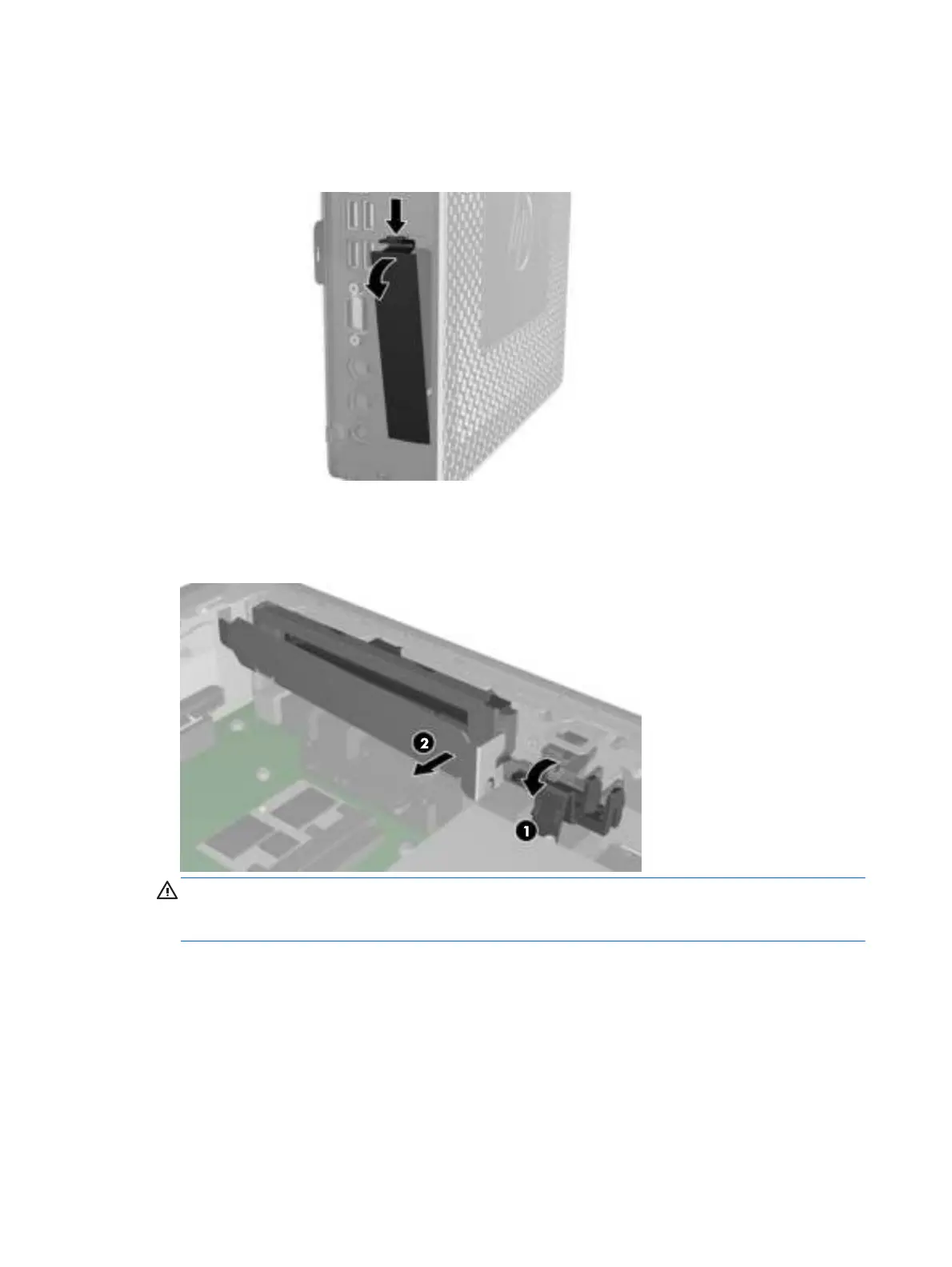

Figure 2-20 Removing the expansion slot blank
2. Open the metal latch securing the expansion slot cover on the inside of the thin client (1) and
remove the expansion slot cover (2).
Figure 2-21 Removing the expansion slot cover
CAUTION: Do not lose this expansion slot cover. If you remove an expansion card, you must
replace it with a new card or expansion slot cover for proper cooling of internal components
during operation.
24 Chapter 2 Hardware changes

HP t610 Series Specifications

General

Power Supply	65W external power adapter
Processor	AMD G-T56N APU with Radeon HD 6320 Graphics (1.65 GHz, 1 MB L2 cache)
Graphics	AMD Radeon HD 6320 Graphics
Memory	4 GB DDR3 SDRAM
Storage	500 GB HDD
Networking	Gigabit Ethernet
USB Ports	6 x USB 2.0 (2 front, 4 rear)
Operating System	HP ThinPro, Windows Embedded Standard 7
Chipset	AMD A55E
Ports	1 serial, 1 parallel
