13. Disconnect all cables from the system board, noting their location for reinstallation.
14. Remove the seven screws (circled in image) that secure the system board to the computer.
15. Lift the system board straight up and out of the computer.

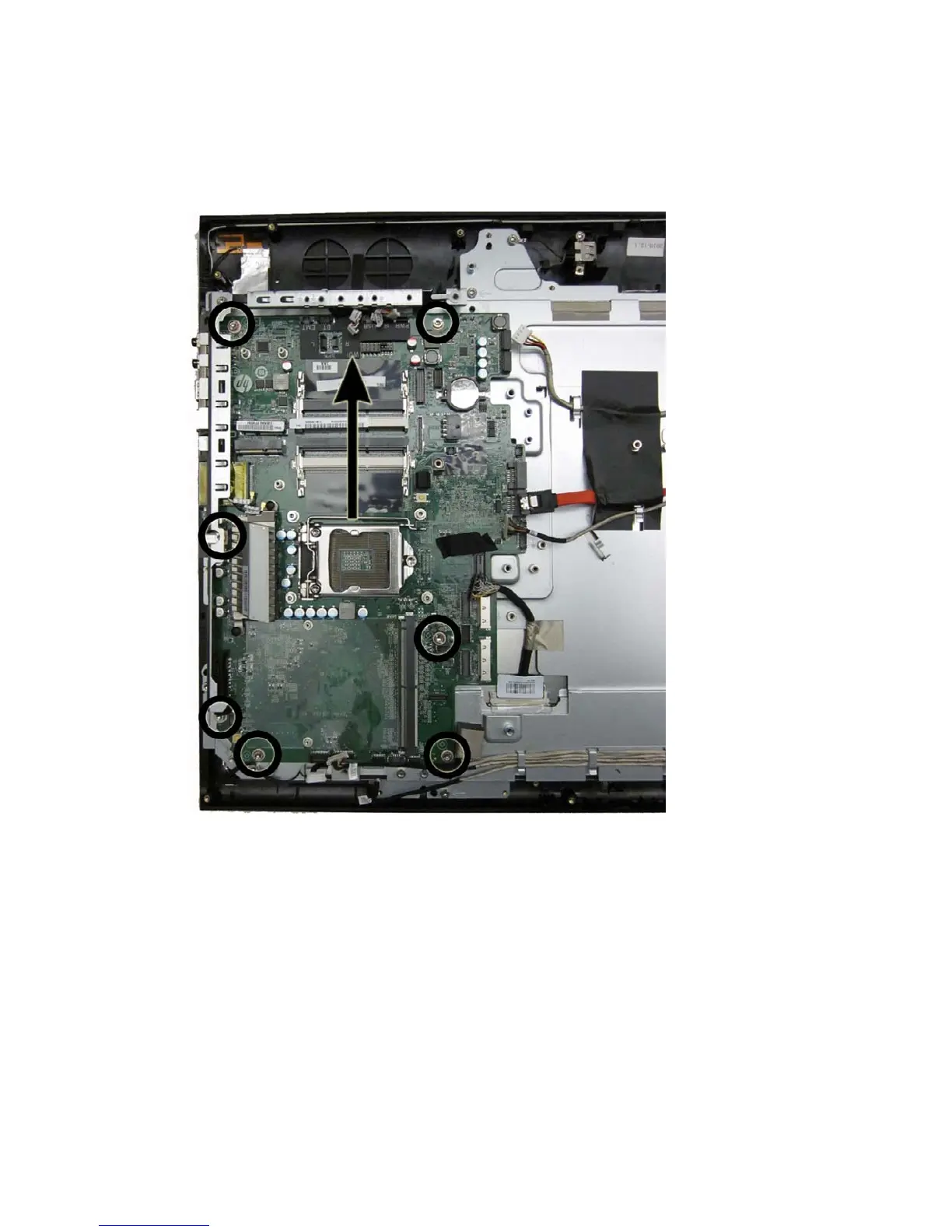

Figure 7-72 Removing the system board
To install the system board, reverse the removal procedures.
96 Chapter 7 Removal and Replacement Procedures
