Power button board
Description Spare part number
Power button board 652305-001
The power button board is located under the left side cap near the bottom of the computer. It is
secured with one screw and has one connector.

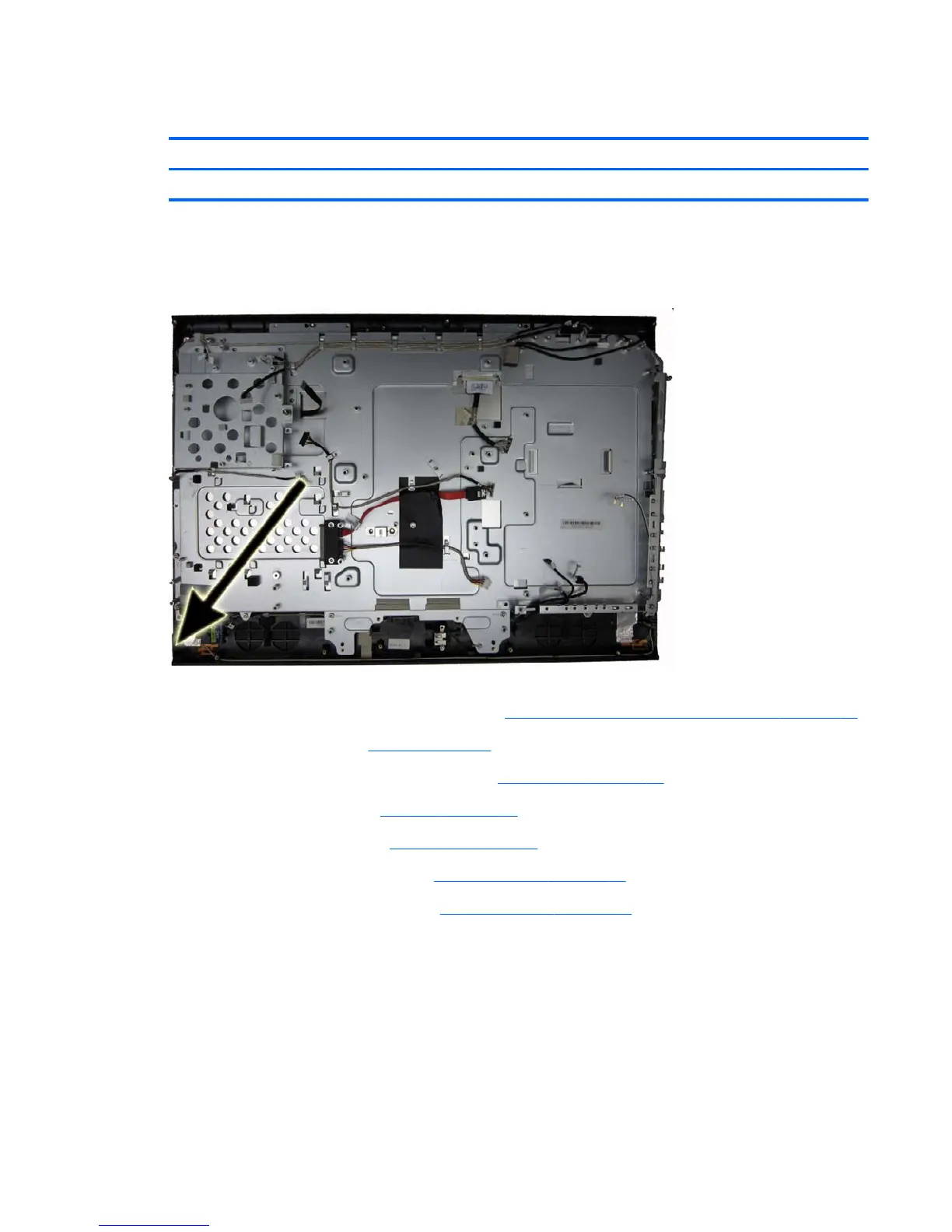

Figure 7-49 Power button board location
To remove the power button board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 33).
2. Remove the stand (see
Stand on page 34).
3. Remove the right and left rear panels (see
Rear panels on page 46).
4. Remove the left cap (see
Left cap on page 60).
5. Remove the right cap (see
Right cap on page 66).
6. Remove the rear logo cover (see
Rear logo cover on page 71).
7. Remove the rear main frame (see
Main rear frame on page 74).
8. Lift the left side of the board first, and then pull the board out of the holder enough to access the
connector (1).
Power button board 75
