HP TouchSmart 9300 Elite User Manual

Volume button board
Description Spare part number
Volume button board 652306-001
The volume button board is located in the right side cap. It is secured with two screws and has one
connector.

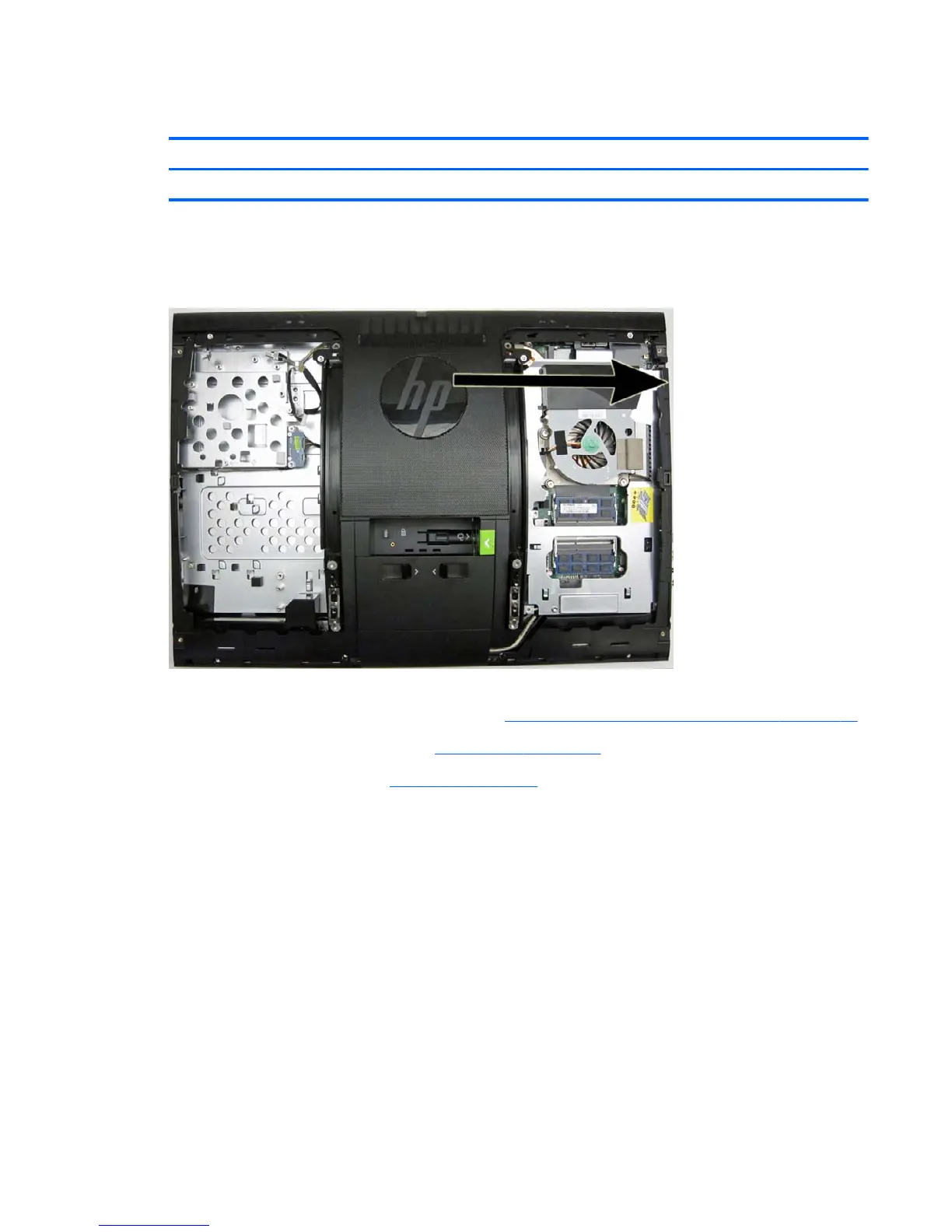

Figure 7-43 Volume button board location
To remove the volume board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 33).
2. Remove the right rear panel (see
Rear panels on page 46).
3. Remove the right cap (see
Right cap on page 66).
4. Remove the two screws (1) that secure the board to the right cap.
Volume button board 69

HP TouchSmart 9300 Elite Specifications

General

RAM	Up to 16 GB DDR3 SDRAM
Operating System	Windows 7 Professional
Touchscreen	Yes
Processor	Intel Core i5 or i7
Display	23-inch diagonal widescreen LCD with LED backlight
Storage	Up to 1 TB Hard Disk Drive or Solid State Drive
Graphics	Intel HD Graphics
Optical Drive	DVD+/-RW SuperMulti DL
Chipset	Intel Q67 Express
Audio	Integrated high-definition audio
Webcam	Integrated 2 MP webcam
Ports	USB 2.0, RJ-45, audio in/out
Networking	Gigabit Ethernet, Wi-Fi
