HP TouchSmart 9300 Elite User Manual

Inverter board
Description Spare part number
Inverter board 658982-001
The inverter board is located on the left side of the computer on top of the optical drive cage. It is
secured with two screws and has two connectors.

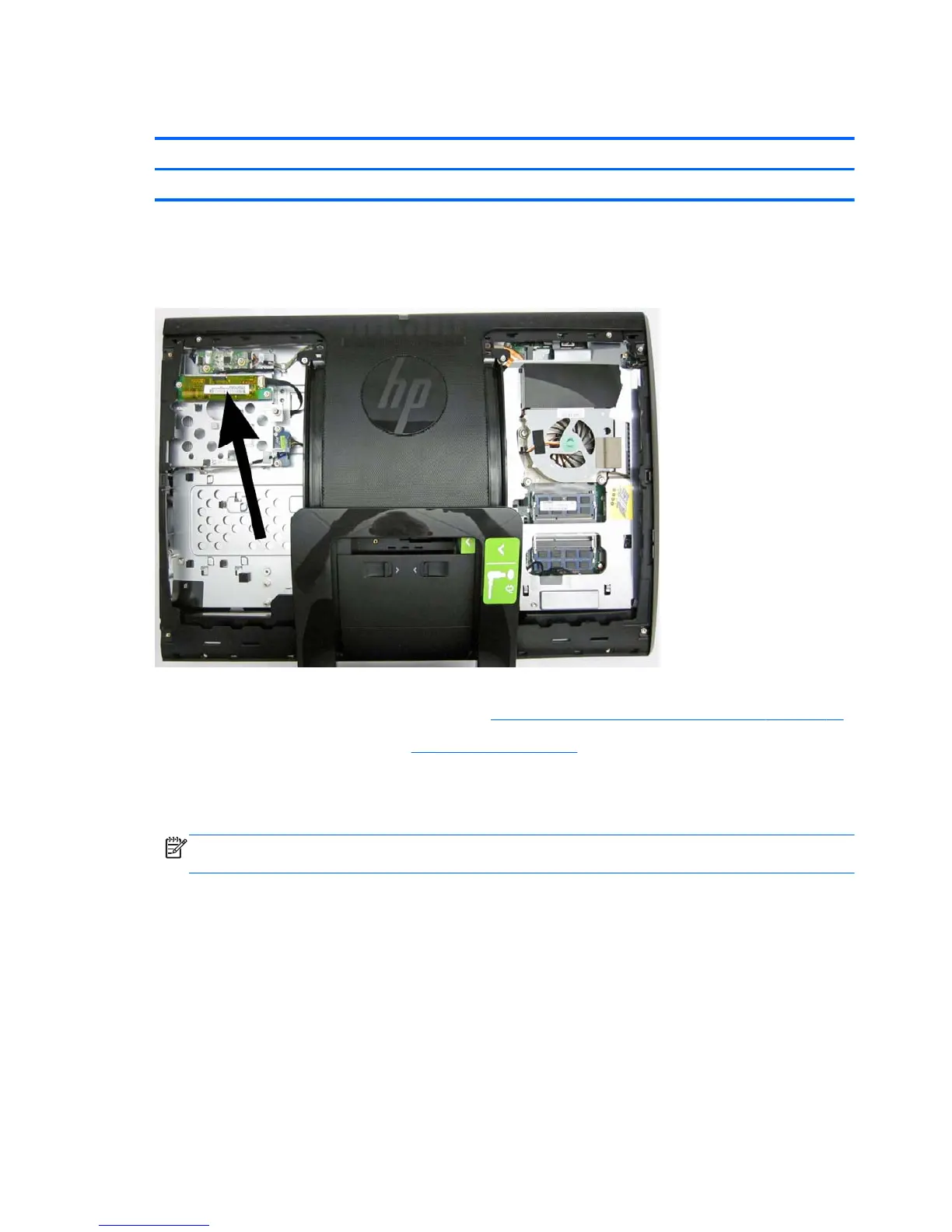

Figure 7-28 Inverter board location
To remove the inverter board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 33).
2. Remove the left rear panel (see
Rear panels on page 46).
3. Remove the two screws (1) that secure the board to the computer.
4. Disconnect the two cables from the board (2).
NOTE: Be careful not to damage the cables when disconnecting them from the board. Do not
pull on the wires.
56 Chapter 7 Removal and Replacement Procedures

HP TouchSmart 9300 Elite Specifications

General

RAM	Up to 16 GB DDR3 SDRAM
Operating System	Windows 7 Professional
Touchscreen	Yes
Processor	Intel Core i5 or i7
Display	23-inch diagonal widescreen LCD with LED backlight
Storage	Up to 1 TB Hard Disk Drive or Solid State Drive
Graphics	Intel HD Graphics
Optical Drive	DVD+/-RW SuperMulti DL
Chipset	Intel Q67 Express
Audio	Integrated high-definition audio
Webcam	Integrated 2 MP webcam
Ports	USB 2.0, RJ-45, audio in/out
Networking	Gigabit Ethernet, Wi-Fi
