HP TouchSmart 9300 Elite User Manual

5. To remove the hard drive from the hard drive cage, remove the four screws on the sides of the
cage that secure the drive to the cage (1), and then slide the drive out of the cage (2).

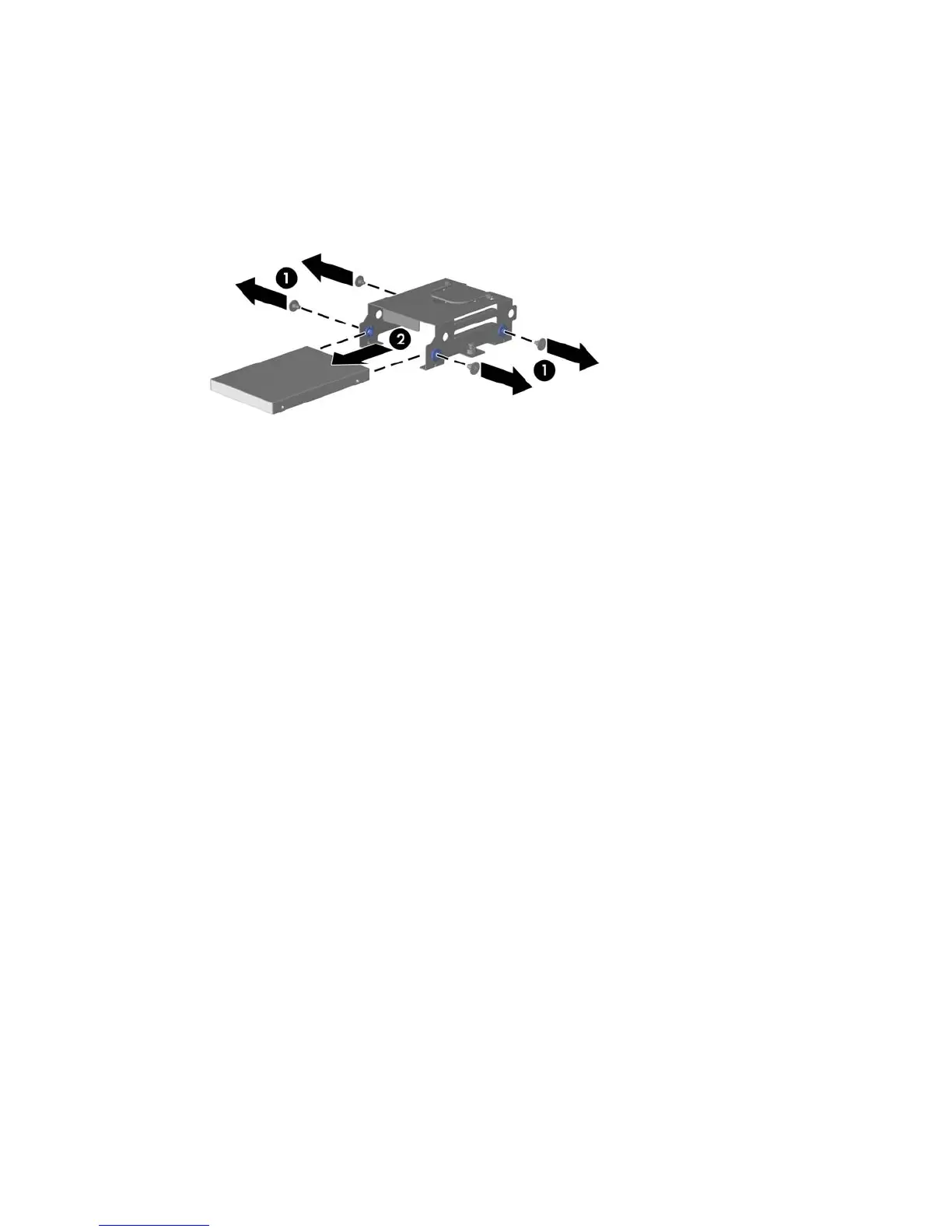

Figure 7-27 Removing the hard drive from the cage
6. Reconnect and reconfigure the computer.
To install a hard drive, reverse the removal procedures.
Hard drive 55

HP TouchSmart 9300 Elite Specifications

General

RAM	Up to 16 GB DDR3 SDRAM
Operating System	Windows 7 Professional
Touchscreen	Yes
Processor	Intel Core i5 or i7
Display	23-inch diagonal widescreen LCD with LED backlight
Storage	Up to 1 TB Hard Disk Drive or Solid State Drive
Graphics	Intel HD Graphics
Optical Drive	DVD+/-RW SuperMulti DL
Chipset	Intel Q67 Express
Audio	Integrated high-definition audio
Webcam	Integrated 2 MP webcam
Ports	USB 2.0, RJ-45, audio in/out
Networking	Gigabit Ethernet, Wi-Fi
