Speakers
Description Spare part number
Right speaker 652274-001
Left speaker 652275-001
The speakers are located at the bottom of the computer. Two separate speakers are each secured by
two screws.

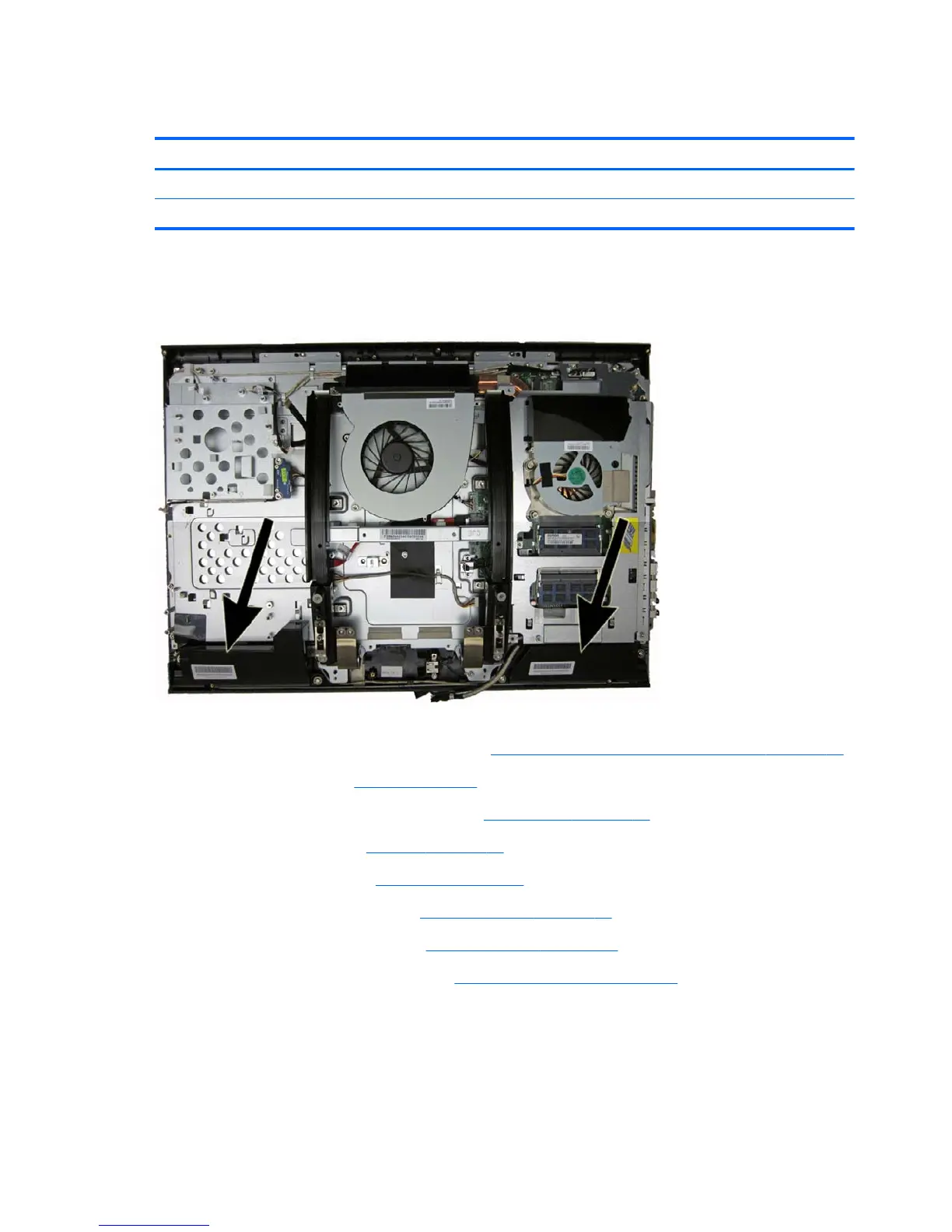

Figure 7-53 Speaker location
To remove the speakers:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 33).
2. Remove the stand (see
Stand on page 34).
3. Remove the right and left rear panels (see
Rear panels on page 46).
4. Remove the left cap (see
Left cap on page 60).
5. Remove the right cap (see
Right cap on page 66).
6. Remove the rear logo cover (see
Rear logo cover on page 71).
7. Remove the rear main frame (see
Main rear frame on page 74).
8. Remove the system board shield (see
System board shield on page 76).
9. Disconnect the speaker cables from the system board connectors (1).
10. Remove the speaker cables from their routing paths.
11. Remove two screws (2) that secure each speaker to the computer.
78 Chapter 7 Removal and Replacement Procedures
