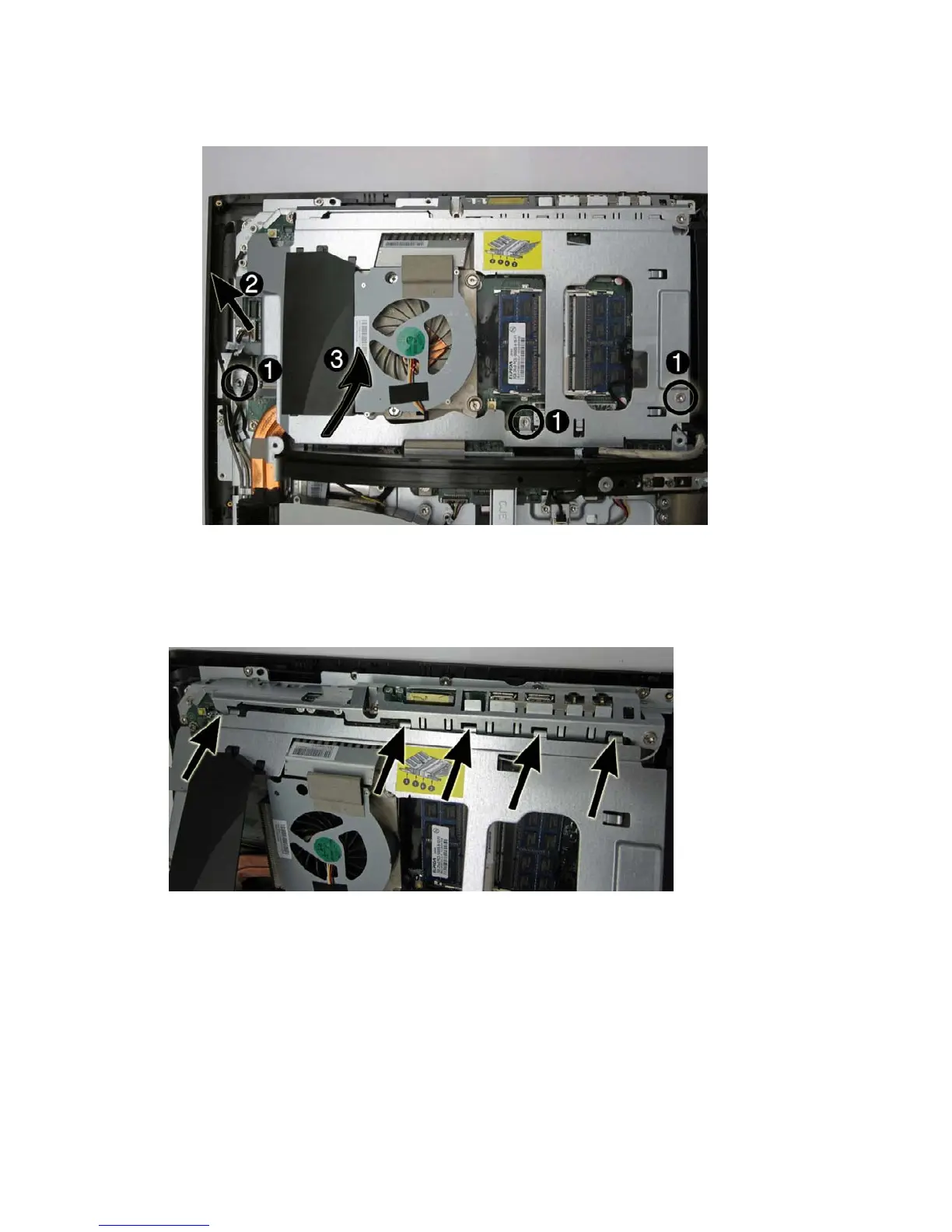

10. Lift the left side of the shield first (3), and then pull the shield up and off the system board.
Figure 7-51 Removing the system board shield
To install the system board shield, reverse the removal procedures.
When replacing the shield, make sure to place the five tabs on the right side of the shield into their
slots in the computer before placing the shield atop the system board.
Figure 7-52 Replacing the system board shield
System board shield 77
