Right cap
The right cap is located along the right side of the computer (when viewed from behind). It is secured
with two screws, and it houses the volume board. You do not have to remove the volume board when
removing the cap if you disconnect the volume board cable from the system board.

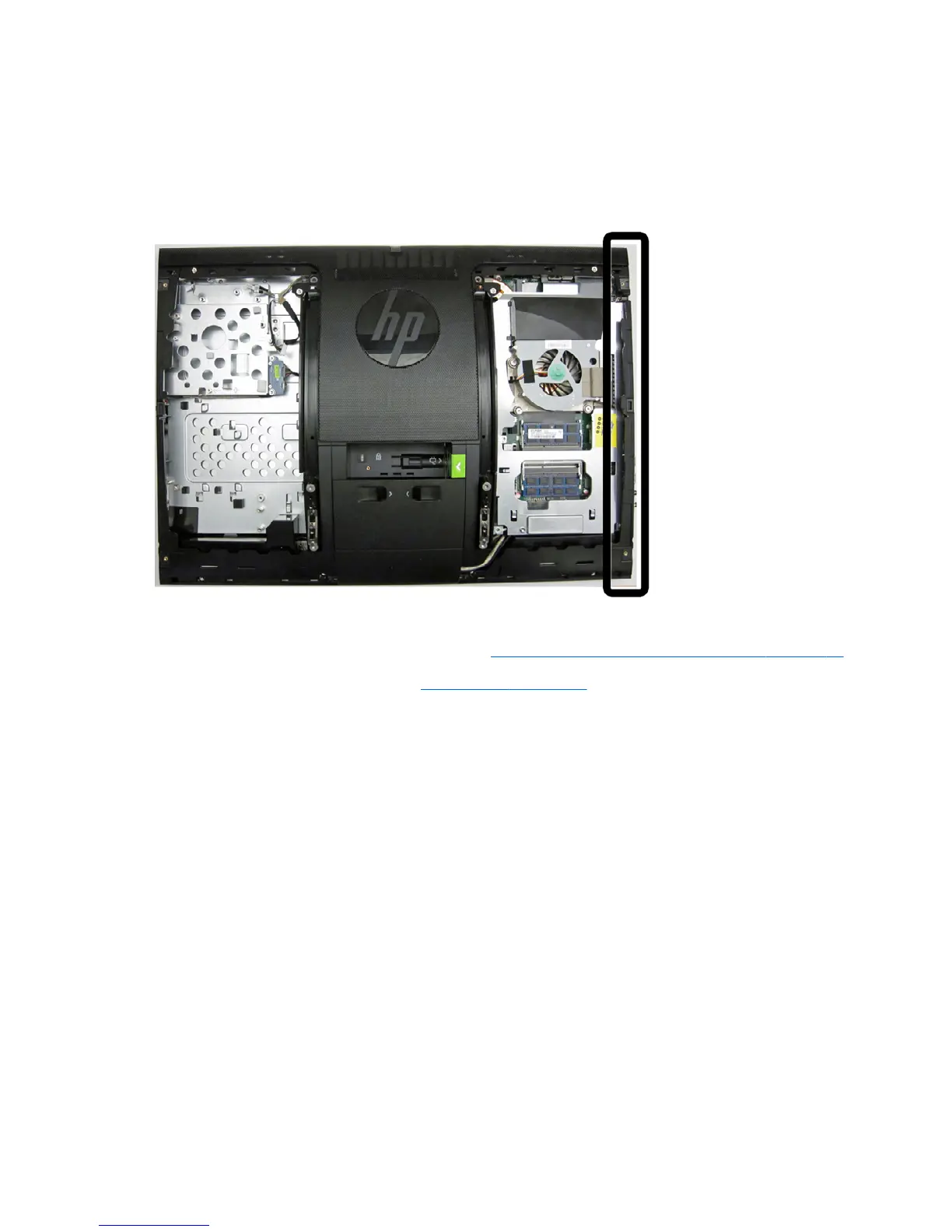

Figure 7-40 Right cap location
To remove the right cap:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 33).
2. Remove the right rear panel (see
Rear panels on page 46).
3. Move the two screws (1) that secure the right side cap to the computer.
66 Chapter 7 Removal and Replacement Procedures
