4. From the outside of the computer, remove the screw that secures the board to the computer.

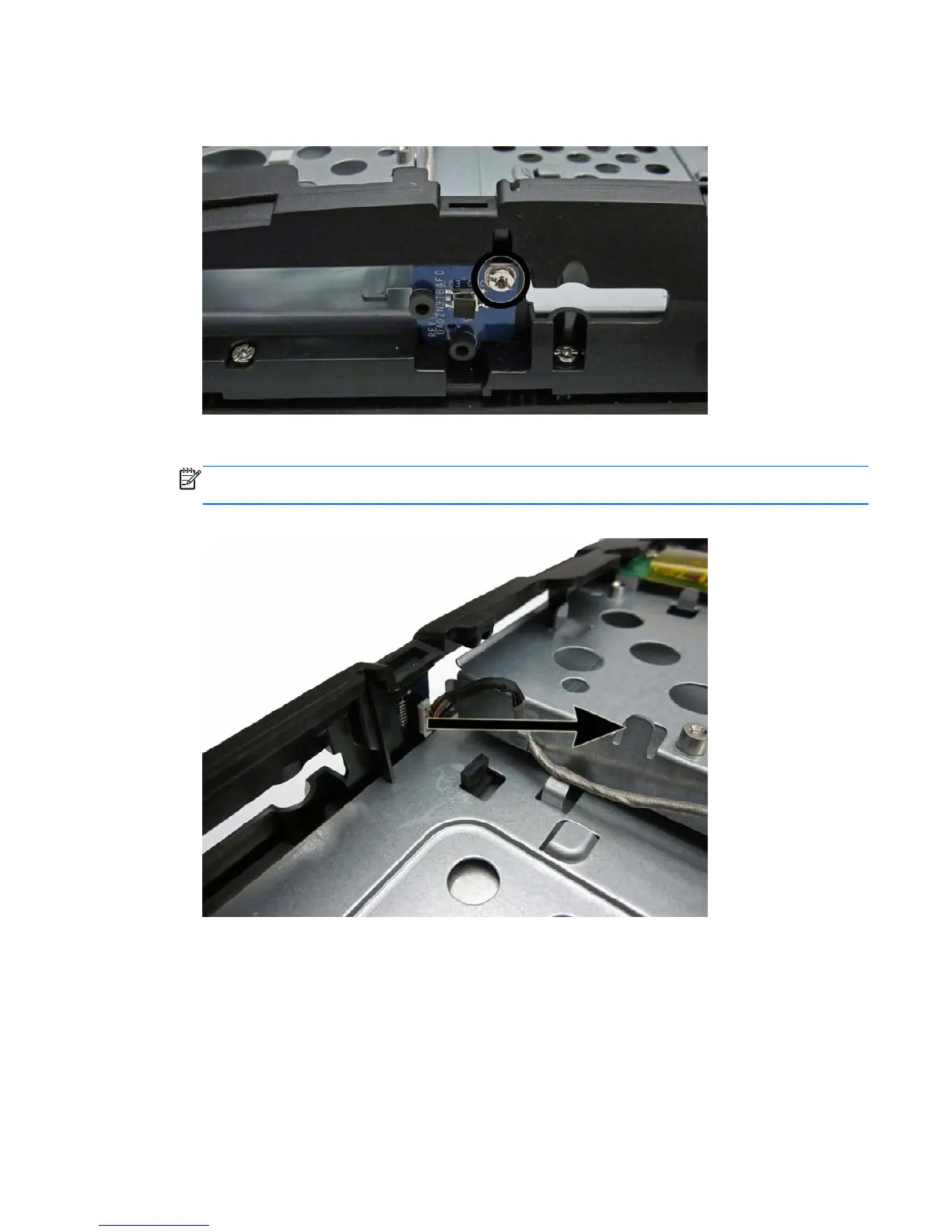

Figure 7-38 Removing the optical drive eject board screw
5. From the inside of the computer, disconnect the cable from the board.
NOTE: Be careful not to damage the cable when disconnecting it from the connector. Do not
pull on the wires.
Figure 7-39 Disconnecting the optical drive eject board cable
6. Remove the board from the computer.
To install the optical drive eject board, reverse the removal procedures.
Optical drive eject board 65

HP TouchSmart 9300 Elite Specifications

General

RAM	Up to 16 GB DDR3 SDRAM
Operating System	Windows 7 Professional
Touchscreen	Yes
Processor	Intel Core i5 or i7
Display	23-inch diagonal widescreen LCD with LED backlight
Storage	Up to 1 TB Hard Disk Drive or Solid State Drive
Graphics	Intel HD Graphics
Optical Drive	DVD+/-RW SuperMulti DL
Chipset	Intel Q67 Express
Audio	Integrated high-definition audio
Webcam	Integrated 2 MP webcam
Ports	USB 2.0, RJ-45, audio in/out
Networking	Gigabit Ethernet, Wi-Fi
