3. Loosen the captive screw on the side of the hard drive cage that secures the cage to the
computer.

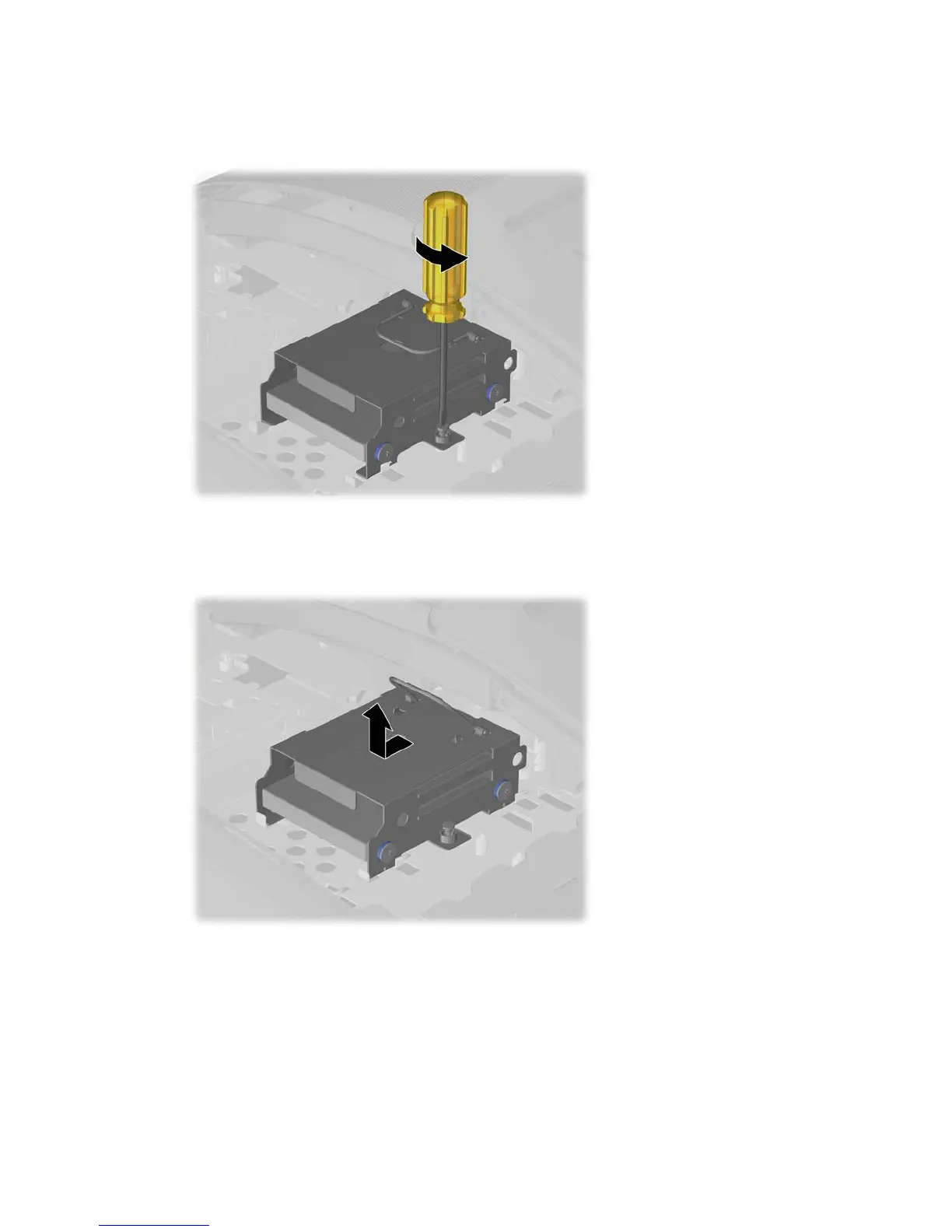

Figure 7-25 Loosening the hard drive cage screw
4. Grasp the handle on top of the hard drive cage and slide the cage toward the outer edge of the
computer, then lift the cage out of the computer.
Figure 7-26 Removing the hard drive cage
54 Chapter 7 Removal and Replacement Procedures
