Left: 1 screw
●
Right: 1 screw

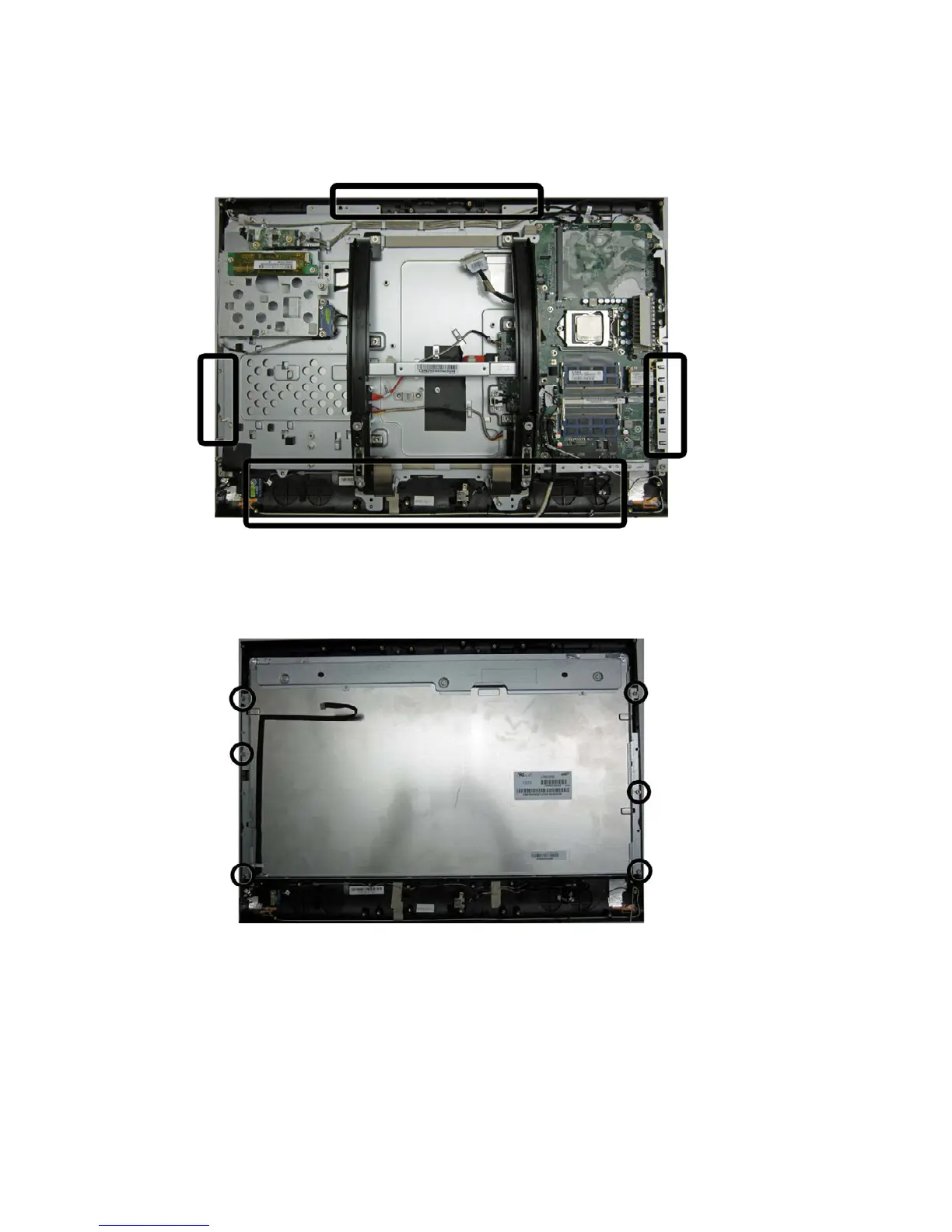

Figure 7-73 Separating the display panel from the frame
15. Separate the display panel from the computer.
16. Remove the six screws that secure the display panel to the front bezel (3 screws per side).
Figure 7-74 Separating the display panel from the front bezel
17. Lift the display panel from the front bezel.
To install a display panel, reverse the removal procedures.
98 Chapter 7 Removal and Replacement Procedures
