5. Pull the board away from the optical drive bracket, and then remove it from the computer (3).

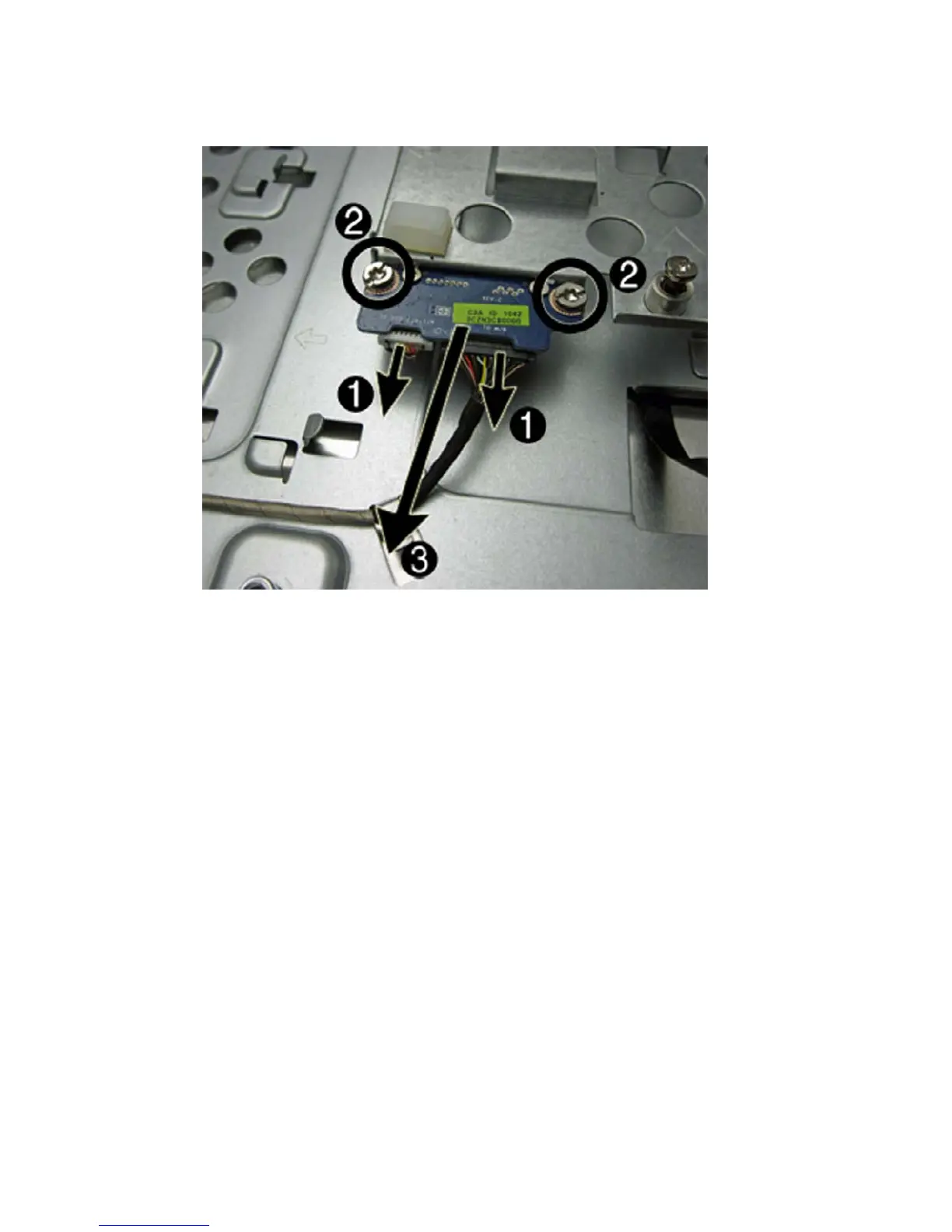

Figure 7-31 Removing the optical drive connector board
6. Remove the board from the computer.
To install the optical drive connector board, reverse the removal procedures.
Optical drive connector board 59
