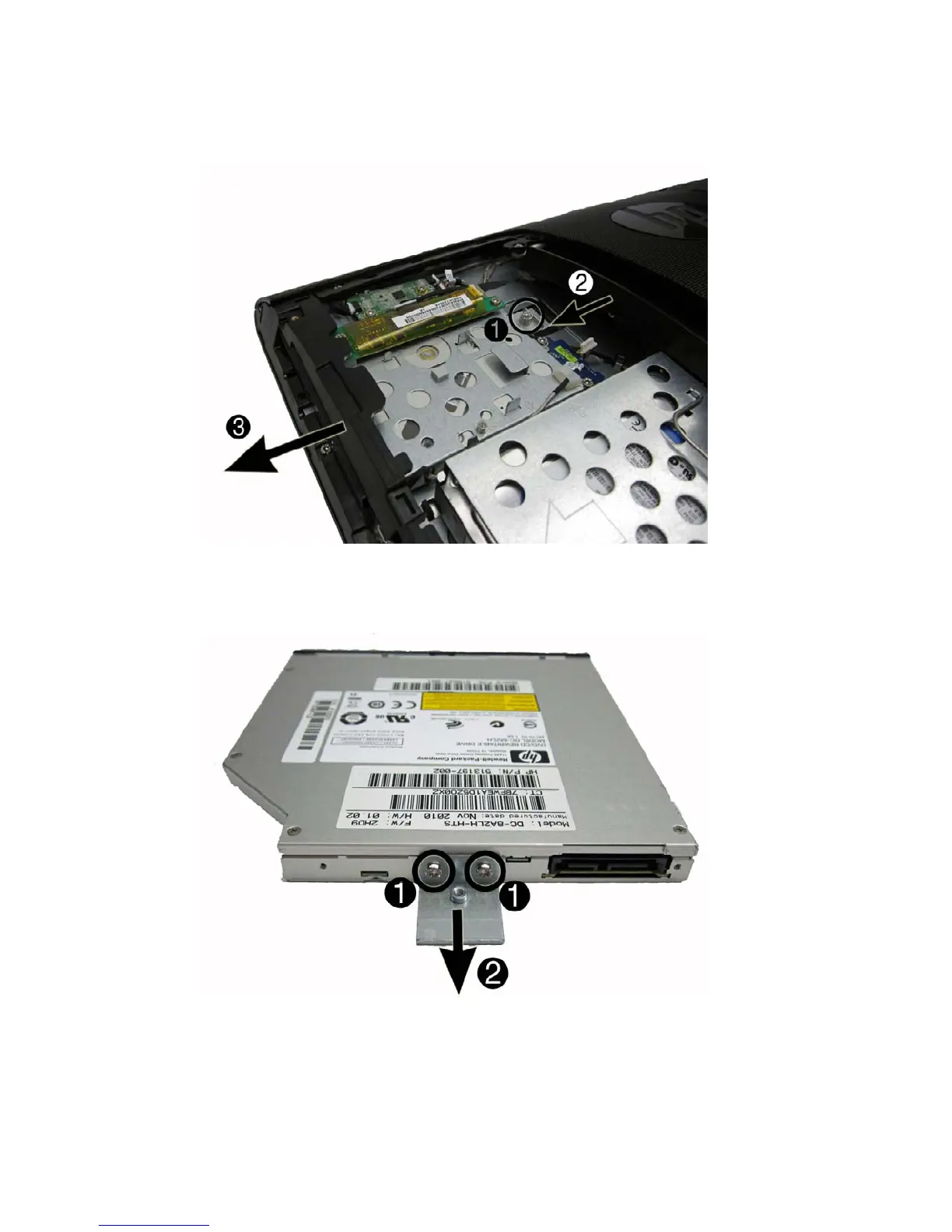

4. Loosen the captive screw (1) that secures the drive to the computer, and then push on the drive
bracket (2) to slide the drive out of the computer (3).
Figure 7-35 Removing the optical drive
5. If you need to remove the drive bracket from the drive, remove the two screws (1) that secure
the bracket to the drive, and then remove the bracket from the drive (2).
Figure 7-36 Removing the optical drive bracket
To install an optical drive, reverse the removal procedures.
Optical drive 63
