8. Remove the stand bracket by removing the eight screws (1) that secure the bracket to the
computer, and then lifting the bracket off the computer (2).

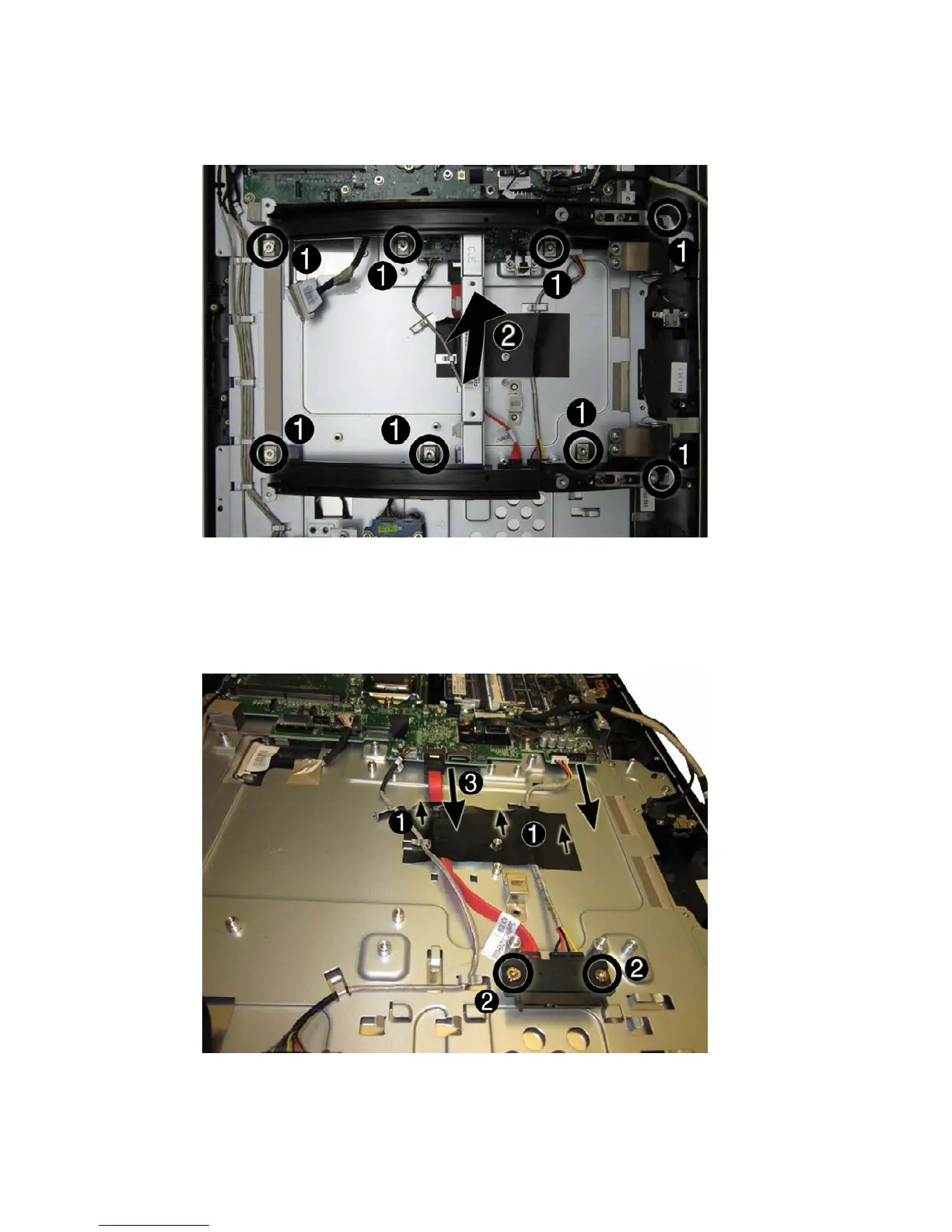

Figure 7-64 Removing the stand bracket
9. Remove the tape (1) that secures the cables to the computer.
10. Remove two screws (2) that secure the hard drive connector to the computer.
11. Disconnect the cables from the system board (3).
Figure 7-65 Removing the hard drive connector
12. Remove the hard drive connector from the computer.
Hard drive connector 89
