8. Remove the system board shield (see System board shield on page 76).
9. Remove the fan sink (see
Fan Sink (Thermal Module) on page 84).
10. Remove two screws (1) that secure the board to the computer.
11. Rotate the outer side of the board upward (2), and then remove it at an angle (3).

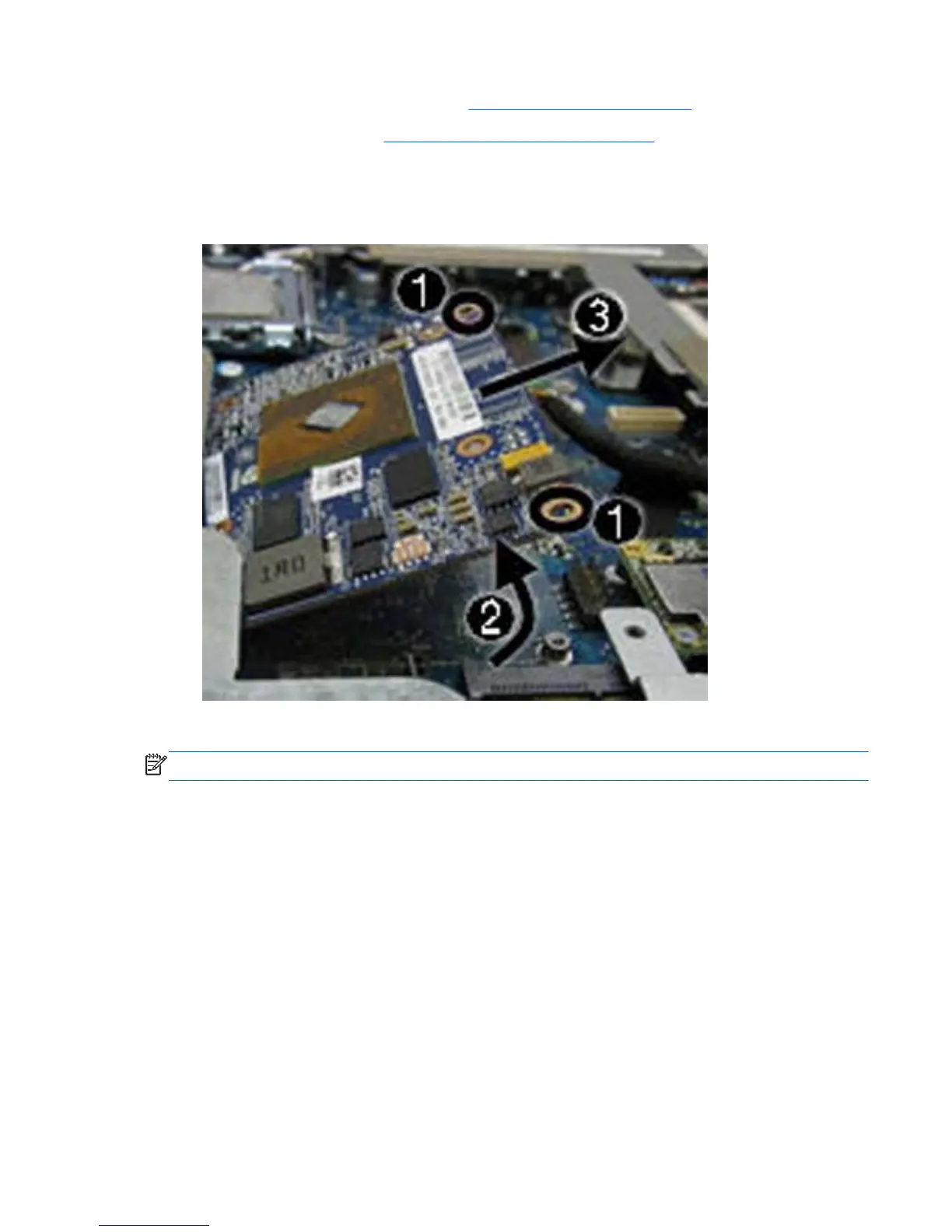

Figure 7-67 Removing the graphics board (board appearance may vary)
To install the graphics board, reverse the removal procedures.
NOTE: Graphics boards are designed with a notch to prevent incorrect insertion.
Graphics board 91
