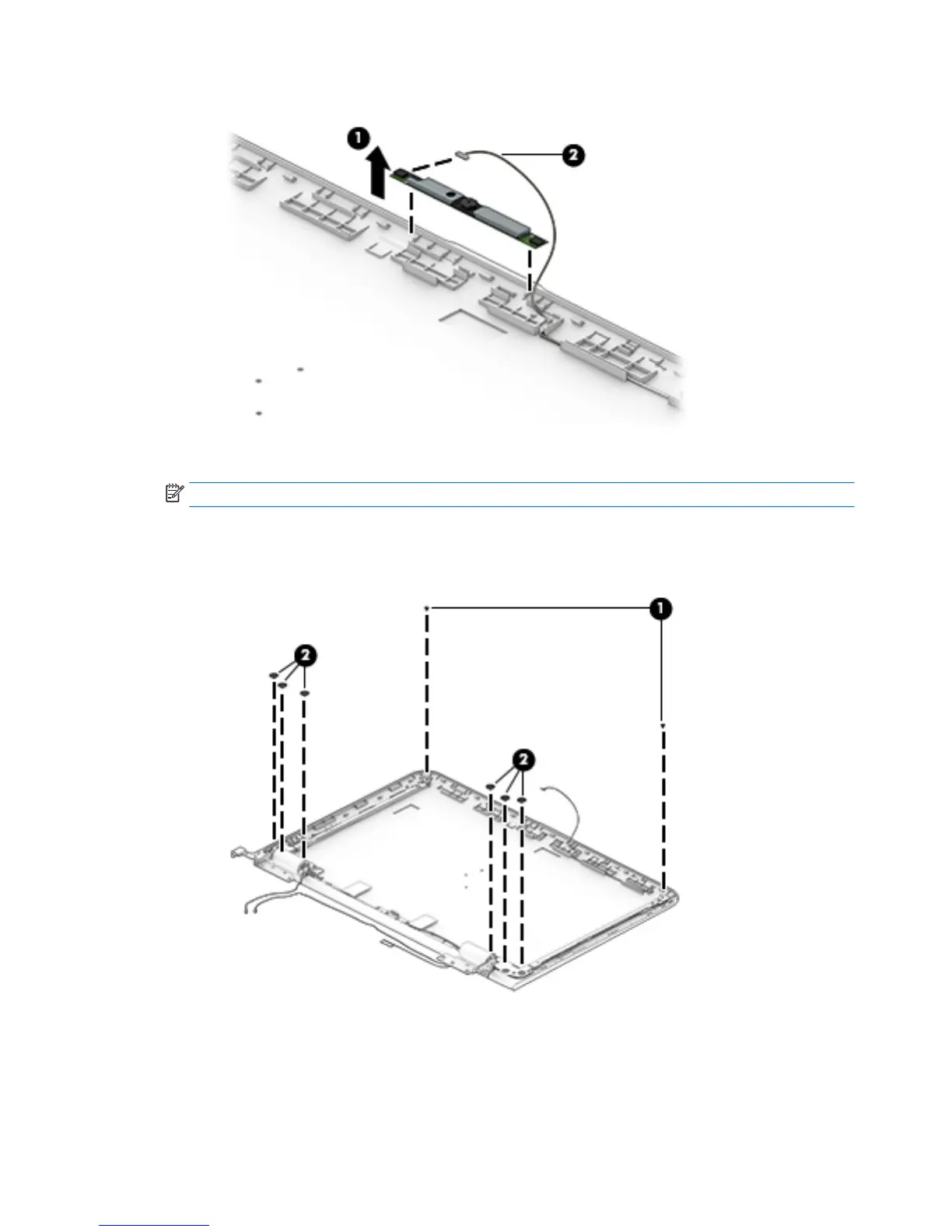

b. Disconnect the cable (2) from the module.
3. To remove the display hinges:
NOTE: The display hinges are available using spare part number 809539-001.
a. Position the display enclosure upright.
b. Remove the Phillips PM2.0×2.0 screw (1) from the top of each hinge and the three broadhead
Phillips PM2.5×2.0 screws (2) from the bottom of each hinge that secure the hinges to the display.
58 Chapter 5 Removal and replacement procedures for Authorized Service Provider parts
