HP Z210 Series

2. Rotate the drive cage to its upright position.

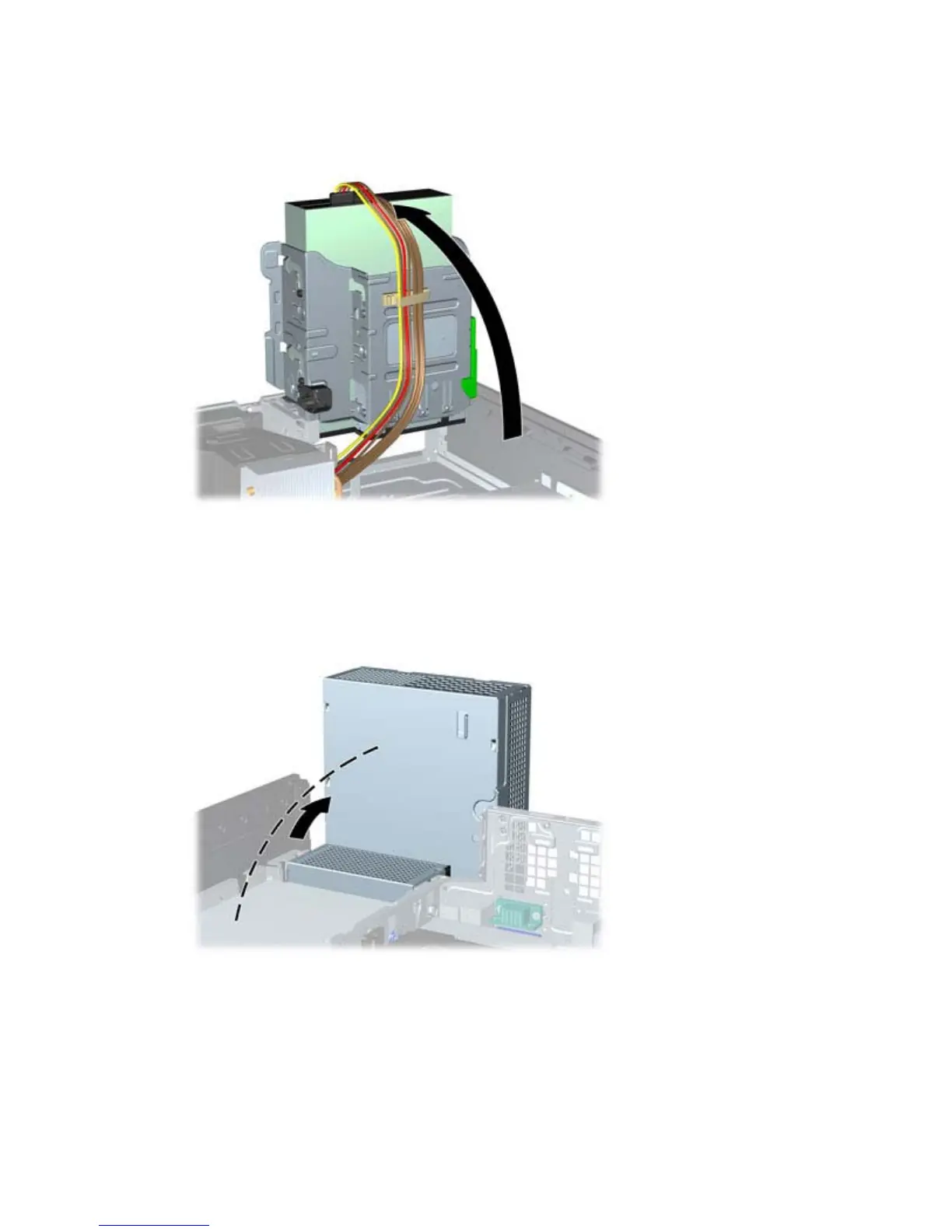

Figure 9-4 Rotating the Drive Cage Up
3. Rotate the power supply to its upright position. The hard drive is located beneath the power
supply.
Figure 9-5 Rotating the power supply up
48 Chapter 9 Installing hard disk drives ENWW
