6. To install a new hard drive, move the silver and blue isolation mounting guide screws from the old
hard drive to the new hard drive.

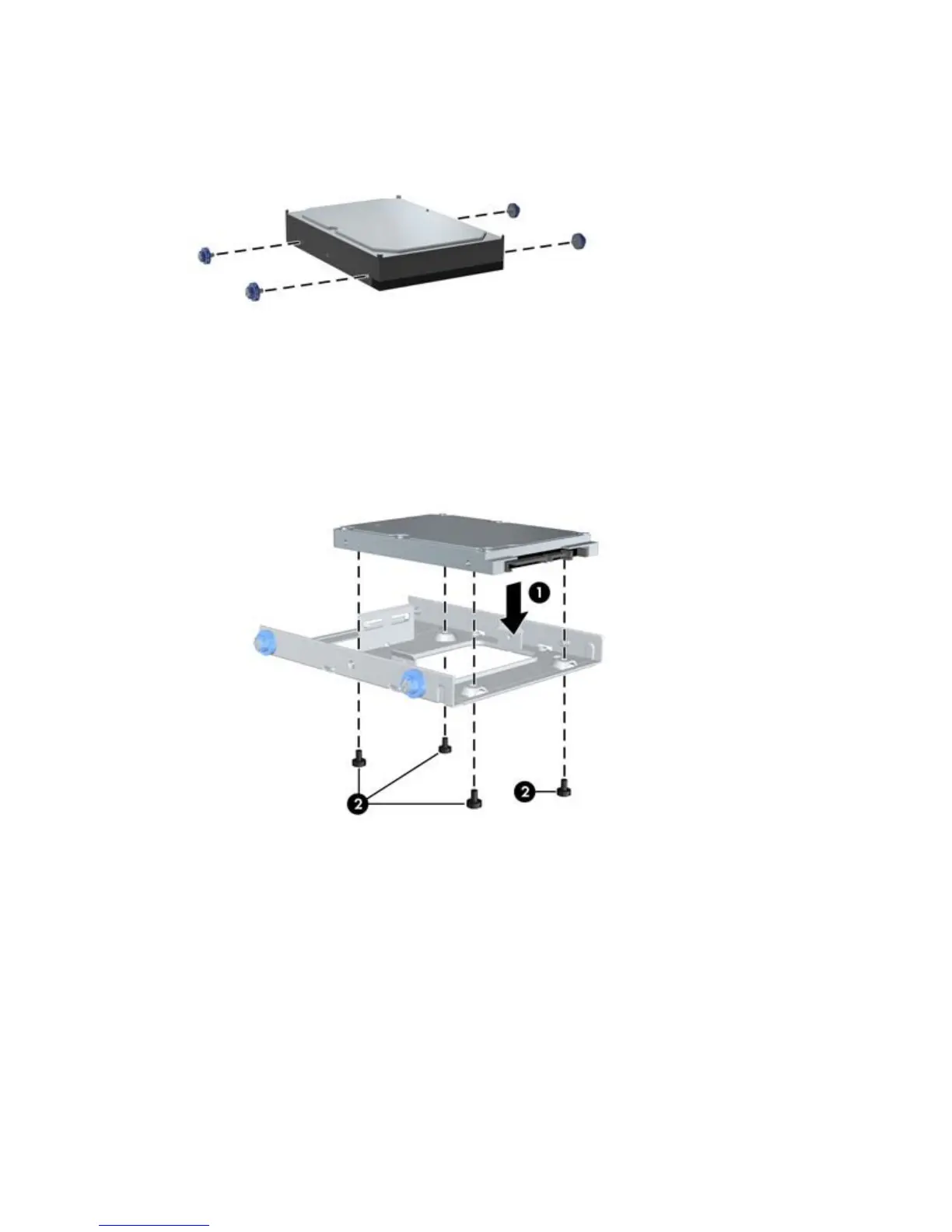

Figure 9-8 Installing the hard drive guide screws
You can also install a 6.4 cm (2.5 in.) small form factor hard drive in the primary drive bay:
a. Transfer the silver and blue isolation mounting guide screws from the old hard drive to a
drive carrier.
b. Use the black M3 screws from the front of the chassis to mount the small form factor drive to
the carrier (2).
Figure 9-9 Attaching the drive to a carrier
50 Chapter 9 Installing hard disk drives ENWW
